TRACOPOWERAC-DC开关电源 TXM015--150W系列 TXM025-105
详细信息
| | 品牌：TRACOPOWER | | 类型：AC/DC电源 | | 输入电压：85-264VAC V | |
| | 输出功率：15W---150W W | | 调制方式：脉冲宽度调制（PWM)式 | | 晶体管连接方式：推挽式 | |
| | 输出电压：3.3V----48V V | | 工作效率：90 % | | 输出波纹噪音：25MV | |
| | 输出电压精度：+/-2 % | | 电压调整率：+/-1 % | | 负载调整率：+/-2 % | |
| | 输出电流：15 A | | 型号：TXM035-105,TXM035-112,TXM035-1 | | | |
TRACOPOWER AC-DC开关电源 TXM015--150W系列 TXM025-105 TXM025-115 TXM025-124

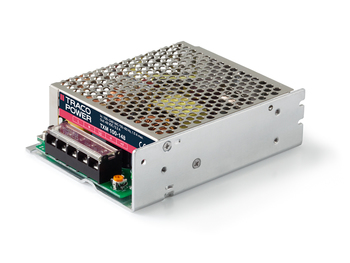

TRACOPOWER TXM系列是一系列封装电源，为各种成本关键应用而设计。 采用低外形金属外壳和螺钉端子块连接，可轻松安装在设备上。 有40个型号，单输出电压从3.3 VDC到48 VDC
特征
•紧凑的金属外壳电源
•成本优化设计
•工作温度70°C
•低空载功耗<0.5W 75 W单位
•螺钉端子块
•无内部风扇可达150 W型号
•通用输入交流输入，全量程
•耐受300 VAC浪涌输入，持续5秒。
•可调输出电压
Models
| Order code |
Output Power |
Output |
Product Distinction |
| TXM015-103 |
13 Watt |
3.3 VDC / 4000 mA |
|
| TXM015-105 |
15 Watt |
5 VDC / 3000 mA |
|
| TXM015-112 |
16 Watt |
12 VDC / 1300 mA |
|
| TXM015-115 |
15 Watt |
15 VDC / 1000 mA |
|
| TXM015-124 |
17 Watt |
24 VDC / 700 mA |
|
| TXM025-103 |
17 Watt |
3.3 VDC / 5000 mA |
|
| TXM025-105 |
25 Watt |
5 VDC / 5000 mA |
|
| TXM025-112 |
25 Watt |
12 VDC / 2100 mA |
|
| TXM025-115 |
24 Watt |
15 VDC / 1600 mA |
|
| TXM025-124 |
26 Watt |
24 VDC / 1100 mA |
|
| TXM035-105 |
30 Watt |
5 VDC / 6 A |
|
| TXM035-112 |
36 Watt |
12 VDC / 3000 mA |
|
| TXM035-115 |
36 Watt |
15 VDC / 2400 mA |
|
| TXM035-124 |
36 Watt |
24 VDC / 1500 mA |
|
| TXM035-148 |
36 Watt |
48 VDC / 750 mA |
|
| TXM050-105 |
40 Watt |
5 VDC / 8 A |
|
| TXM050-112 |
50 Watt |
12 VDC / 4200 mA |
|
| TXM050-115 |
51 Watt |
15 VDC / 3400 mA |
|
| TXM050-124 |
53 Watt |
24 VDC / 2200 mA |
|
| TXM050-148 |
53 Watt |
48 VDC / 1100 mA |
|
| TXM075-105 |
60 Watt |
5 VDC / 12 A |
|
| TXM075-112 |
72 Watt |
12 VDC / 6 A |
|
| TXM075-115 |
75 Watt |
15 VDC / 5000 mA |
|
| TXM075-124 |
77 Watt |
24 VDC / 3200 mA |
|
| TXM075-148 |
77 Watt |
48 VDC / 1600 mA |
|
| TXM100-105 |
100 Watt |
5 VDC / 20 A |
|
| TXM100-112 |
102 Watt |
12 VDC / 8.5 A |
|
| TXM100-115 |
101 Watt |
15 VDC / 6.7 A |
|
| TXM100-124 |
101 Watt |
24 VDC / 4200 mA |
|
| TXM100-148 |
101 Watt |
48 VDC / 2100 mA |
|
| TXM150-112 |
134 Watt |
12 VDC / 11.2 A |
|
| TXM150-124 |
134 Watt |
24 VDC / 5.6 A |
|
| TXM150-148 |
134 Watt |
48 VDC / 2800 mA |
|
