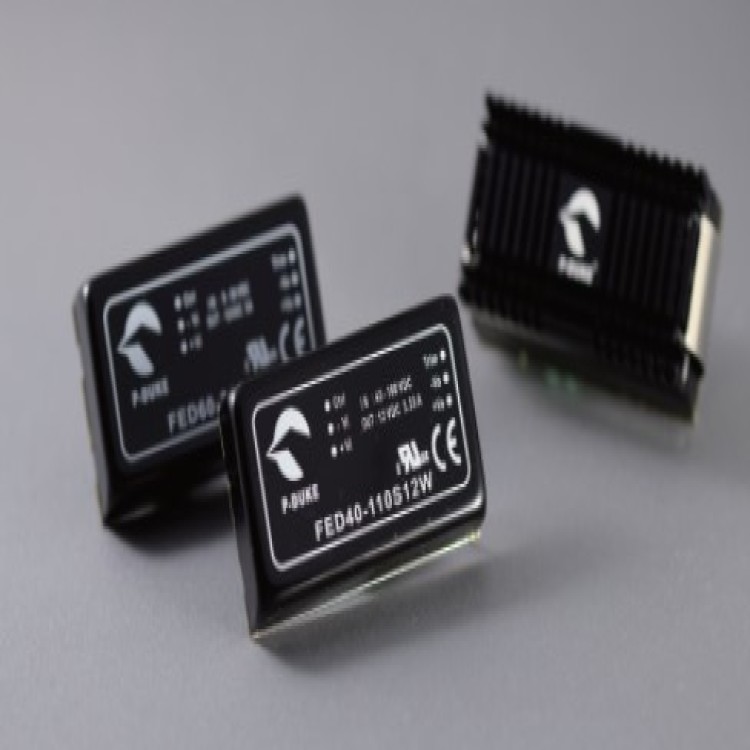

FED40W系列铁路电源转换器FED40-110S12W
详细信息
| | 品牌：P-DUKE | | 型号：FED40-110S15W FED40-110S24W FE | | 加工定制：是 | |
| | 输出电流：30 A | | 输入电压：12 V | | 输出电压：15 V | |
| | 输出功率：40 W | | 频率范围：50-80 | | 额定正向平均电流：69 | |
| | 工作温度：40 ℃ | | 针脚数：69 | | 产品认证：SOP | |
FED40W系列铁路电源转换器 FED40-110S3P3W FED40-110S05W FED40-110S12W FED40-110S15W FED40-110S24W
产品
■无需小负载
■1600vdc输入，输出24V和48V
3000vdc输入输出隔离110W
■2.00 x 1.00 x 0.40英寸
■六面连续护罩
| 產品型號 |
輸入範圍 |
輸出電壓 |
| FED40-110S3P3W |
43 ~ 160 VDC |
3.3 VDC / 10000 mA |
| FED40-110S05W |
43 ~ 160 VDC |
5 VDC / 8000 mA |
| FED40-110S12W |
43 ~ 160 VDC |
12 VDC / 3333 mA |
| FED40-110S15W |
43 ~ 160 VDC |
15 VDC / 2666 mA |
| FED40-110S24W |
43 ~ 160 VDC |
24 VDC / 1666 mA |
| FED40-110D12W |
43 ~ 160 VDC |
±12 VDC / ±1666 mA |
| FED40-110D15W |
43 ~ 160 VDC |
±15 VDC / ±1333 mA |
| FED40-110D24W |
43 ~ 160 VDC |
±24 VDC / ±833 mA |
| FED40-24S3P3W |
9 ~ 36 VDC |
3.3 VDC / 10000 mA |
| FED40-24S05W |
9 ~ 36 VDC |
5 VDC / 8000 mA |
| FED40-24S12W |
9 ~ 36 VDC |
12 VDC / 3333 mA |
| FED40-24S15W |
9 ~ 36 VDC |
15 VDC / 2666 mA |
| FED40-24S24W |
9 ~ 36 VDC |
24 VDC / 1666 mA |
| FED40-24D12W |
9 ~ 36 VDC |
±12 VDC / ±1666 mA |
| FED40-24D15W |
9 ~ 36 VDC |
±15 VDC / ±1333 mA |
| FED40-24D24W |
9 ~ 36 VDC |
±24 VDC / ±833 mA |
| FED40-48S3P3W |
18 ~ 75 VDC |
3.3 VDC / 10000 mA |
| FED40-48S05W |
18 ~ 75 VDC |
5 VDC / 8000 mA |
| FED40-48S12W |
18 ~ 75 VDC |
12 VDC / 3333 mA |
| FED40-48S15W |
18 ~ 75 VDC |
15 VDC / 2666 mA |
| FED40-48S24W |
18 ~ 75 VDC |
24 VDC / 1666 mA |
| FED40-48D12W |
18 ~ 75 VDC |
±12 VDC / ±1666 mA |
| FED40-48D15W |
18 ~ 75 VDC |
±15 VDC / ±1333 mA |
| FED40-48D24W |
18 ~ 75 VDC |
±24 VDC / ±833 mA |
