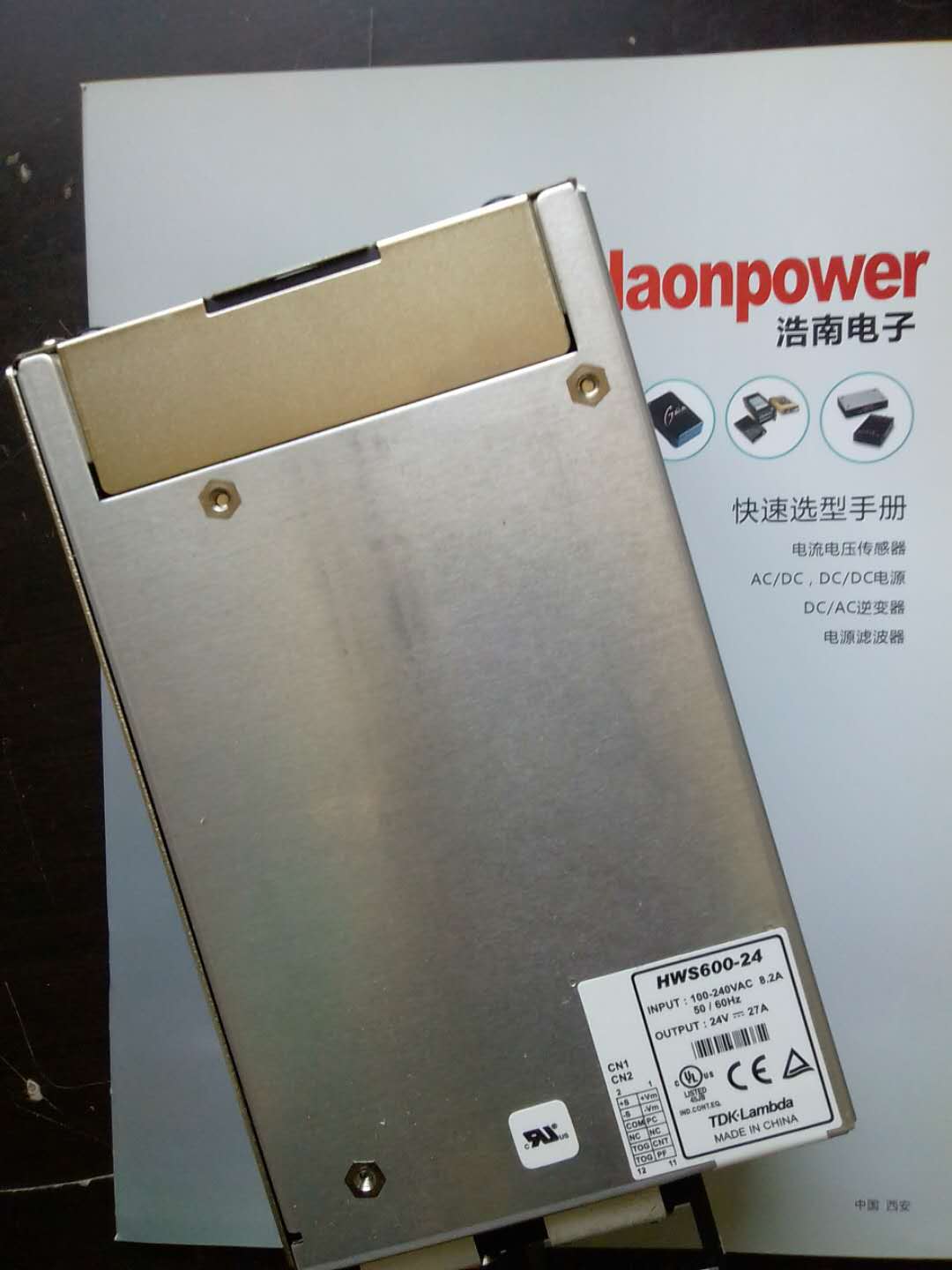

大电流开关电源HWS600L-36/BAT
详细信息
| | 品牌：TDK-Lambda | | 型号：HWS600L-60/BAT HWS1000L-36/BAT | | 加工定制：是 | |
| | 输出电流：30 A | | 输入电压：12 V | | 输出电压：25 V | |
| | 输出功率：40 W | | 频率范围：50-80 | | 额定正向平均电流：69 | |
| | 工作温度：40 ℃ | | 针脚数：36 | | 产品认证：DIP | |
大电流开关电源HWS600L-36/BAT HWS600L-60/BAT HWS1000L-36/BAT HWS1000L-60/BAT
特征
利用嵌入式微调器调节电流和充电电压的恒流电源。
能够处理恒流恒压充电。多种充电电池充电的选择。
能够处理24V和48V蓄电池。Available in 600W and 1,000W types, total 4 models.
并联运行
小的外形就像HWS系列
| Model |
HWS600L-36/BAT |
HWS600L-60/BAT |
HWS1000L-36/BAT |
HWS1000L-60/BAT |
| Input Voltage Range |
AC85-265V(47-63Hz) or DC120-350V |
| Maximum Output Power |
648W |
600W |
1044W |
1020W |
Constant Voltage Mode
Adjustable Range
(At Shipment) |
28－36VDC
(36VDC) |
48－60VDC
(60VDC) |
28－36VDC
(36VDC) |
48－60VDC
(60VDC) |
Constant Current Mode
(At Shipment) |
9.9－17.1ADC
(15.3－17.1ADC) |
5.5－9.5ADC
(8.5－9.5ADC) |
15.9－27.6ADC
(24.7－27.6ADC) |
9.3－16.2ADC
(14.5－16.2ADC) |
| External Control |
Analog control possible for voltage only |
| Parallel Operation |
Possible |
| Operating Temperature |
-20 to +74℃ ( -20 to +50℃ : 100%, +74℃ :50% ) |
| Safety |
|
|
| Weight |
1.6kg |
2.3kg |
| Dimension(WxHxD)mm |
120 x 61 x 190 |
150 x 61 x 240 |
The above contents may be changed without prior notice
