P-DUKE导轨DC/DC转换器DFEC15-24D15W
详细信息
| | 品牌：P-DUKE | | 加工定制：是 | | 类型：开关式直流稳压器 | |
| | 输出电流：30 A | | 输入电压：12 V | | 输出电压：200 V | |
| | 输出功率：40 W | | 频率范围：50-80 | | 工作温度：40 ℃ | |
| | 产品认证：SOP | | 型号：DFEC15-24D12W DFEC15-24D15W DF | | | |

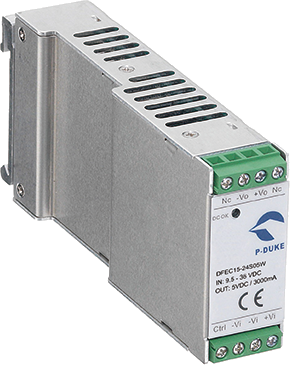

P-DUKE DIN导轨安装DC/DC转换器 DFEC15-24S12W DFEC15-24S05W DFEC15-24D05W DFEC15-24D15W
特征
■不需要小负载
■1600VDC输入到输出绝缘电压
■用于输入和输出连接的螺丝端子
■DIN-RA / TS-35 / 7.5或TS-35/15标准
■防护IP20（IEC60529）
■内部输出直流指示灯
■MEET EN55022 B类
| Model No |
Input Range |
Output Range |
| DFEC15-24S15W |
9.5 ~ 36 VDC |
15 VDC / 1000 mA |
| DFEC15-24D05W |
9.5 ~ 36 VDC |
±5 VDC / ±1500 mA |
| DFEC15-24D12W |
9.5 ~ 36 VDC |
±12 VDC / ±625 mA |
| DFEC15-24D15W |
9.5 ~ 36 VDC |
±15 VDC / ±500 mA |
| DFEC15-48S3P3W |
18 ~ 75 VDC |
3.3 VDC / 4500 mA |
| DFEC15-48S05W |
18 ~ 75 VDC |
5 VDC / 3000 mA |
| DFEC15-48S5P1W |
18 ~ 75 VDC |
5.1 VDC / 3000 mA |
| DFEC15-48S12W |
18 ~ 75 VDC |
12 VDC / 1250 mA |
| DFEC15-48S15W |
18 ~ 75 VDC |
15 VDC / 1000 mA |
| DFEC15-48D05W |
18 ~ 75 VDC |
±5 VDC / ±1500 mA |
| DFEC15-48D12W |
18 ~ 75 VDC |
±12 VDC / ±625 mA |
| DFEC15-48D15W |
18 ~ 75 VDC |
±15 VDC / ±500 mA |
| DFEC15-24S3P3W |
9.5 ~ 36 VDC |
3.3 VDC / 4500 mA |
| DFEC15-24S05W |
9.5 ~ 36 VDC |
5 VDC / 3000 mA |
| DFEC15-24S5P1W |
9.5 ~ 36 VDC |
5.1 VDC / 3000 mA |
| DFEC15-24S12W |
9.5 ~ 36 VDC |
12 VDC / 1250 mA |
