HAE75W系列DC-DC模块电源HAE75-48S28W
详细信息
| | 品牌：P-DUKE | | 型号：HAE75-24S48W HAE75-48S3P3W HAE | | 加工定制：否 | |
| | 输出电流：30 A | | 输入电压：15 V | | 输出电压：24 V | |
| | 输出功率：40 W | | 频率范围：50-90 | | 额定正向平均电流：69 | |
| | 工作温度：40 ℃ | | 针脚数：36 | | 产品认证：DIP | |

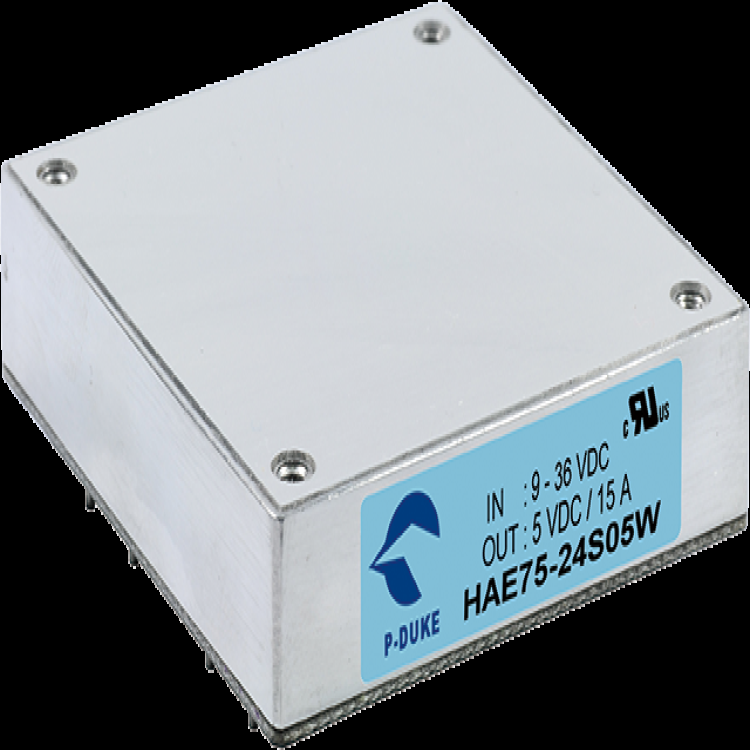

P-DUKE HAE75W系列DC-DC模块电源HAE75-110S3P3W HAE75-24S05W HAE75-24S24W HAE75-24S15W
特征
■无需小负载
■3000vac加强绝缘110W
2250vdc基本绝缘24W和48W
| Model No |
Input Range |
Output Range |
| HAE75-48S12W |
18 ~ 75 VDC |
12 VDC / 6.3 A |
| HAE75-48S15W |
18 ~ 75 VDC |
15 VDC / 5 A |
| HAE75-48S24W |
18 ~ 75 VDC |
24 VDC / 3.2 A |
| HAE75-48S28W |
18 ~ 75 VDC |
28 VDC / 2.7 A |
| HAE75-48S48W |
18 ~ 75 VDC |
48 VDC / 1.6 A |
| HAE75-110S3P3W |
43 ~ 160 VDC |
3.3 VDC / 20 A |
| HAE75-110S05W |
43 ~ 160 VDC |
5 VDC / 15 A |
| HAE75-110S12W |
43 ~ 160 VDC |
12 VDC / 6.3 A |
| HAE75-110S15W |
43 ~ 160 VDC |
15 VDC / 5 A |
| HAE75-110S24W |
43 ~ 160 VDC |
24 VDC / 3.2 A |
| HAE75-110S28W |
43 ~ 160 VDC |
28 VDC / 2.7 A |
| HAE75-110S48W |
43 ~ 160 VDC |
48 VDC / 1.6 A |
| HAE75-24S3P3W |
9 ~ 36 VDC |
3.3 VDC / 20 A |
| HAE75-24S05W |
9 ~ 36 VDC |
5 VDC / 15 A |
| HAE75-24S12W |
9 ~ 36 VDC |
12 VDC / 6.3 A |
| HAE75-24S15W |
9 ~ 36 VDC |
15 VDC / 5 A |
| HAE75-24S24W |
9 ~ 36 VDC |
24 VDC / 3.2 A |
| HAE75-24S28W |
9 ~ 36 VDC |
28 VDC / 2.7 A |
| HAE75-24S48W |
9 ~ 36 VDC |
48 VDC / 1.6 A |
| HAE75-48S3P3W |
18 ~ 75 VDC |
3.3 VDC / 20 A |
| HAE75-48S05W |
18 ~ 75 VDC |
5 VDC / 15 A |
