ARCH 紧凑型DC/DC模块电源SW20F-48-5S SW20F-48-15SSW20F-48-24S SW20F-48-12S
详细信息
| | 品牌：ARCH | | 型号：SW20F-48-24S SW20F-48-12S | | 加工定制：否 | |
| | 输入电压：DC9-36V/18-75V V | | 输出电压：DC3.3--24 V | | 输出功率：20 W | |
| | 频率范围：300KHZ | | 工作温度：-40--85 ℃ | | | |
ARCH
紧凑型DC/DC
模块电源SW20F-48-5S SW20F-48-15S SW20F-48-24S SW20F-48-12S

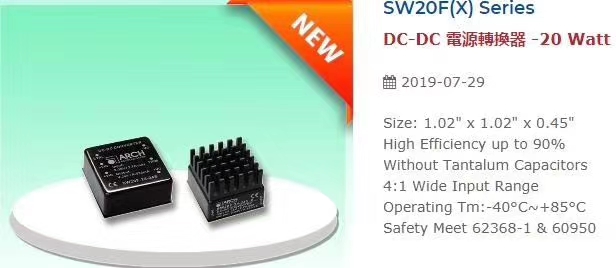

标准尺寸：1.02 x 1.02 x 0.45
英寸
带非导电底座的五面屏蔽铝，黑色阳极氧化
工作温度：-40
〜85
度
4
：1
宽输入范围
内部没有钽电容器
低纹波和噪音
远程开/
关控制
螺丝端子可选
规格
1.
除非另有说明，否则规格均在标称输入电压，+ 25
°C
的预热时间后。
2.
使用0.1U 50V // 47U 50V
陶瓷电容测量。 交叉输出
| Input Specification |
|
| |
Characteristics |
Conditions |
|
| |
Voltage Range |
4:1 Range: |
9 ~ 36 VDC
18 ~ 75 VDC
|
|
| |
|
|
|
| |
Filter |
C type |
|
| |
|
|
|
|
|
| |
|
|
| |
|
Auto-recovery |
|
| |
|
|
|
|
|
| |
General Specification |
|
| |
Characteristics |
Conditions |
|
| |
Switching Frequency |
(typ.) |
|
| |
Isolation Voltage (Input to Output) |
2250 VDC (min.) |
|
| |
Operating Temperature |
-40 °C to +85 °C (with derating) |
|
| |
Storage Temperature |
-55 °C to +105 °C |
|
| |
Humidity |
95% RH (max.) |
|
| |
Cooling |
Free air convection |
|
| |
|
|
|
|
|
| |
Physical Specification |
|
| |
Characteristics |
Conditions |
|
| |
Dimension (Tolerance ±0.5) |
26.0 x 26.0 x 11.3 mm |
|
| |
1.02 x 1.02 x 0.45 inches |
|
| |
Weight |
SW20F-xS X:23 g (with Heatsink)
SW20F-xS:17 g (without Heatsink) |
|
| |
Case Material |
Five-side shielded Aluminum with Non-Conductive base, Black Anodize |
|
| |
| Model |
|
Model No.
(Ordering Part No.) |
Input Range |
Output Voltage |
Output Current |
Eff |
| ( V.AC ) |
( V.DC ) |
( mA ) |
( 效率 ) |
| Single Output Models |
| SW20F-24-5S |
9 ~ 36 VDC |
5 |
4000 |
89 |
| SW20F-24-12S |
9 ~ 36 VDC |
12 |
1667 |
88.5 |
| SW20F-24-15S |
9 ~ 36 VDC |
15 |
1333 |
88.5 |
| SW20F-24-24S |
9 ~ 36 VDC |
24 |
833 |
90 |
| SW20F-48-5S |
18 ~ 75 VDC |
5 |
4000 |
89 |
| SW20F-48-12S |
18 ~ 75 VDC |
12 |
1667 |
88.5 |
| SW20F-48-15S |
18 ~ 75 VDC |
15 |
1333 |
88.5 |
| SW20F-48-24S |
18 ~ 75 VDC |
24 |
833 |
90 |
| SW20F-24-5S X |
9 ~ 36 VDC |
5 |
4000 |
89 |
| SW20F-24-12S X |
9 ~ 36 VDC |
12 |
1667 |
88.5 |
| SW20F-24-15S X |
9 ~ 36 VDC |
15 |
1333 |
88.5 |
| SW20F-24-24S X |
9 ~ 36 VDC |
24 |
833 |
90 |
| SW20F-48-5S X |
18 ~ 75 VDC |
5 |
4000 |
89 |
| SW20F-48-12S X |
18 ~ 75 VDC |
12 |
1667 |
88.5 |
| SW20F-48-15S X |
18 ~ 75 VDC |
15 |
1333 |
88.5 |
| SW20F-48-24S X |
18 ~ 75 VDC |
24 |
833 |
90 |
| |
| |
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Please refer to the PDF file published on the web site as the final version. |
|
|
|
|
|
|
| |
|
|
|
|
|
|
