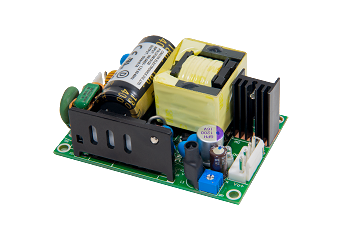

CINCONITE开放式电源CFM81S240 CFM81S120 CFM81S150CFM81S480
详细信息
| | 品牌：CINCON | | 类型：AC/DC电源 | | 输入电压：90〜264VAC V | |
| | 输出功率：81 W | | 晶体管连接方式：单端式 | | 输出电压：12V--48V V | |
| | 工作效率：90 % | | 型号：CFM81S480 | | | |
ITE
开放式电源CFM81S240 CFM81S120 CFM81S150 CFM81S480
具有峰值负载的80W AC-DC 2
“ x3
” ITE
开放式电源
CFM81S
通用输入范围90
〜264VAC
连续短路保护
效率91
％
空载功率<0.3W
2
” x 3
”尺寸
峰值负载（2
倍额定电流（注7
））
Model List
| Part Number |
Power (Watts) |
Input Voltage |
Output Voltage |
Output Current |
Efficiency (效率) |
Operating Altitude |
Operating Temperature |
| CFM81S120 |
80.4W |
90-264 |
12V |
6.7A |
89% |
5000m |
-30°C ~ 80°C |
| CFM81S150 |
80.4W |
90-264 |
15V |
5.36A |
89% |
5000m |
-30°C ~ 80°C |
| CFM81S240 |
80.4W |
90-264 |
24V |
3.35A |
90% |
5000m |
-30°C ~ 80°C |
| CFM81S480 |
80.16W |
90-264 |
48V |
1.67A |
91% |
5000m |
-30°C ~ 80°C |
