TRACOPOWER工业电源转换器TMR4-4811WI TMR4-4812WI TMR4-4813WITMR4-4815WI TMR4-4822WI TMR4-4
详细信息
| | 品牌：TRACOPOWER | | 型号：TMR4-4815WI TMR4-4822WI TMR4-4 | | 加工定制：否 | |
| | 输出电流：3 A | | 输入电压：DC9-36V/18-75V V | | 输出电压：DC5--24 V | |
| | 输出功率：4W W | | 频率范围：250KHZ | | 额定正向平均电流：3 | |
| | 工作温度：-40--71 ℃ | | 针脚数：8PIN | | | |
适用于工业电源转换器TMR4-4811WI TMR4-4812WI TMR4-4813WI TMR4-4815WI TMR4-4822WI TMR4-4823WI

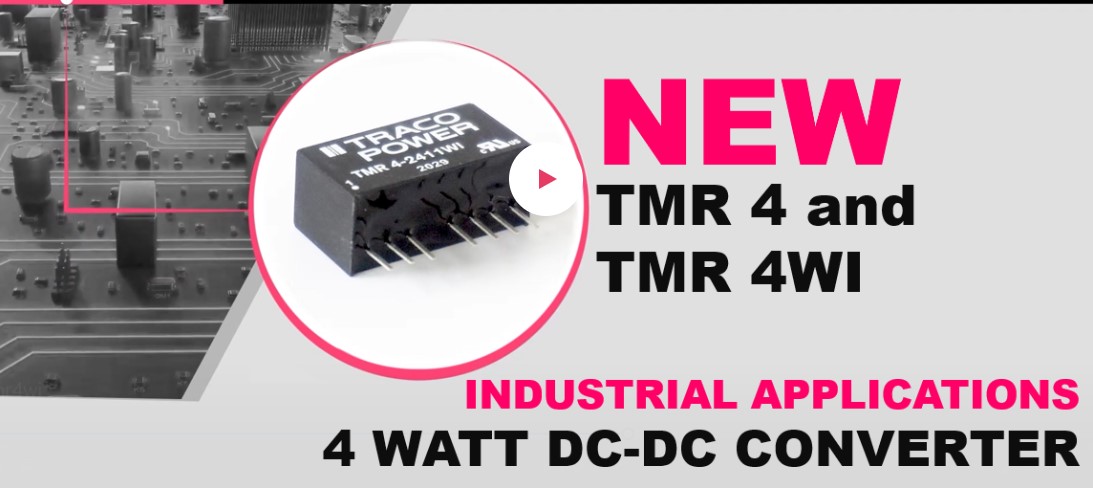

TMR4WI是稳压4瓦DC / DC转换器系列，具有4：1的输入电压范围。它采用紧凑型SIP-8封装，具有单输出和双输出型号，1600 VDC的I / O绝缘电压以及防止短路和过载的保护。作为4瓦转换器，该系列在更常见的3瓦和6瓦转换器之间起到了良好的差距。在3瓦转换器将在良好条件（例如输出功率）下运行的应用中，它为5瓦和6瓦转换器提供了一种经济的替代方案。智能设计可提供83％的效率，并且在-40°C至+ 70°C的温度范围内不降低功率，这使得该转换器系列可以在温度要求苛刻的应用中不受限制地使用。此外，集成的远程开/关功能提供了一种方便的方式来控制您的应用程序。 TMR 4WI旨在为许多应用提供高质量，高成本效益和紧凑的解决方案。
特征
紧凑的SIP-8封装
4：1输入电压范围
温度范围–40°至+ 70°C，无降容
效率83％
I / O绝缘1600 VDC
防止短路和过载
远程开/关控制
3年产品保修
Compare
Model
Power
Input
Output
Short description
Additional Info
TMR 4-2411WI
4 W
9-36 VDC
5 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2411WI
TMR 4-2412WI
4 W
9-36 VDC
12 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2412WI
TMR 4-2413WI
4 W
9-36 VDC
15 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2413WI
TMR 4-2415WI
4 W
9-36 VDC
24 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2415WI
TMR 4-2422WI
4 W
9-36 VDC
±12 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2422WI
TMR 4-2423WI
4 W
9-36 VDC
±15 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-2423WI
TMR 4-4811WI
4 W
18-75 VDC
5 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4811WI
NEW!
TMR 4-4812WI
4 W
18-75 VDC
12 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4812WI
NEW!
TMR 4-4813WI
4 W
18-75 VDC
15 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4813WI
NEW!
TMR 4-4815WI
4 W
18-75 VDC
24 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4815WI
NEW!
TMR 4-4822WI
4 W
18-75 VDC
±12 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4822WI
TMR 4-4823WI
4 W
18-75 VDC
±15 VDC
4 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, high operating temperature, regulated, encapsulated, SIP-8
TMR 4-4823WI
