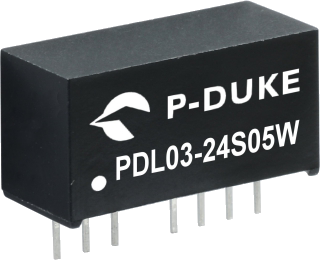

P-DUKE3W线路板安装电源模块PDL03-24S15 PDL03-24D15 PDL03-24D12
详细信息
| | 品牌：P-DUKE | | 类型：模块电源 | | 输入电压：9 ~ 18 VDC V | |
| | 输出功率：3W W | | 调制方式：脉冲频率调制（PFM）式 | | 晶体管连接方式：单端式 | |
| | 输出电压：5/15 V | | 工作效率：91 % | | 输出电压精度：81 % | |
| | 电压调整率：66 % | | 负载调整率：62 % | | 输出电流：50 A | |
| | 型号：PDL03-24D12 | | | | | |
3W
线路板安装电源模块PDL03-24S05 PDL03-24S15 PDL03-24D15 PDL03-24D12
特征
■不需要小负荷
■高达3000VDC
输入至输出绝缘电压
■小尺寸和低轮廓：0.86 X 0.36 X 0.44
英寸
■低输出纹波和噪声
| Model No |
Input Range |
Output Range |
| PDL03-05S05 |
4.5 ~ 9 VDC |
5 VDC / 600 mA |
| PDL03-05S09 |
4.5 ~ 9 VDC |
9 VDC / 333 mA |
| PDL03-05S12 |
4.5 ~ 9 VDC |
12 VDC / 250 mA |
| PDL03-05S15 |
4.5 ~ 9 VDC |
15 VDC / 200 mA |
| PDL03-05D05 |
4.5 ~ 9 VDC |
±5 VDC / ±300 mA |
| PDL03-05D12 |
4.5 ~ 9 VDC |
±12 VDC / ±125 mA |
| PDL03-05D15 |
4.5 ~ 9 VDC |
±15 VDC / ±100 mA |
| PDL03-12S05 |
9 ~ 18 VDC |
5 VDC / 600 mA |
| PDL03-12S09 |
9 ~ 18 VDC |
9 VDC / 333 mA |
| PDL03-12S12 |
9 ~ 18 VDC |
12 VDC / 250 mA |
| PDL03-12S15 |
9 ~ 18 VDC |
15 VDC / 200 mA |
| PDL03-12D05 |
9 ~ 18 VDC |
±5 VDC / ±300 mA |
| PDL03-12D12 |
9 ~ 18 VDC |
±12 VDC / ±125 mA |
| PDL03-12D15 |
9 ~ 18 VDC |
±15 VDC / ±100 mA |
| PDL03-24S05 |
18 ~ 36 VDC |
5 VDC / 600 mA |
| PDL03-24S09 |
18 ~ 36 VDC |
9 VDC / 333 mA |
| PDL03-24S12 |
18 ~ 36 VDC |
12 VDC / 250 mA |
| PDL03-24S15 |
18 ~ 36 VDC |
15 VDC / 200 mA |
| PDL03-24D05 |
18 ~ 36 VDC |
±5 VDC / ±300 mA |
| PDL03-24D12 |
18 ~ 36 VDC |
±12 VDC / ±125 mA |
| PDL03-24D15 |
18 ~ 36 VDC |
±15 VDC / ±100 mA |
| PDL03-48S05 |
36 ~ 75 VDC |
5 VDC / 600 mA |
| PDL03-48S09 |
36 ~ 75 VDC |
9 VDC / 333 mA |
| PDL03-48S12 |
36 ~ 75 VDC |
12 VDC / 250 mA |
| PDL03-48S15 |
36 ~ 75 VDC |
15 VDC / 200 mA |
| PDL03-48D05 |
36 ~ 75 VDC |
±5 VDC / ±300 mA |
| PDL03-48D12 |
36 ~ 75 VDC |
±12 VDC / ±125 mA |
| PDL03-48D15 |
36 ~ 75 VDC |
±15 VDC / ±100 mA |
