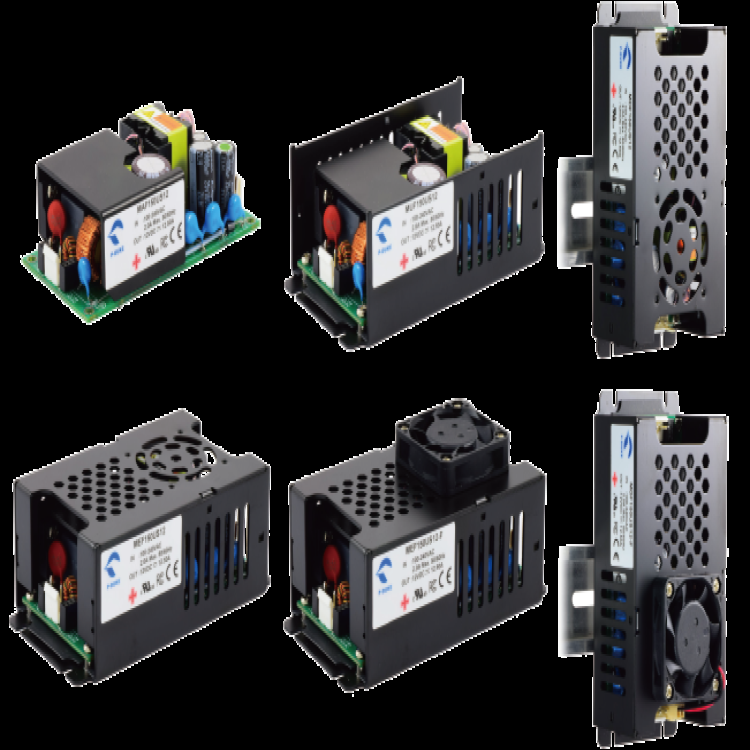

P-DUKE开关电源MAF150US24B MAF150US28B MAF150US12B
详细信息
| | 品牌：P-DUKE | | 类型：AC/DC电源 | | 输入电压：85至264VAC V | |
| | 输出功率：150 W | | 调制方式：脉冲宽度调制（PWM)式 | | 晶体管连接方式：单端式 | |
| | 输出电压：DC12-48V V | | 工作效率：47-63 % | | 输出电压精度：+/-1 % | |
| | 电压调整率：+/-2 % | | 负载调整率：+/-1 % | | 输出电流：0-10A A | |
| | 型号：MAF150US48B MAF150US36B | | | | | |
P-DUKE
开关电源MAF150US24B MAF150US28B MAF150US12B MAF150US48B MAF150US36B
特征
■0.3 W
以下的低待机功耗
■输入电压范围：85
至264VAC
，47
至63HZ
■有功功率校正
■内置EMI
滤波器
■输出电压可调
■开架尺寸2.00 X 4.00 X 1.16
英寸
■4000VAC
输入至输出2MOPP
绝缘
■100µA
以下的低泄漏电流
■运行海拔5000M
■5
年保修
| Model No |
Input Range |
Output Range |
| MEF150US24B |
85 ~ 264 VAC |
24 VDC / 5.63A |
| MDF150US24B |
85 ~ 264 VAC |
24 VDC / 5.63A |
| MAF150US28B |
85 ~ 264 VAC |
28 VDC / 3.93A |
| MUF150US28B |
85 ~ 264 VAC |
28 VDC / 3.93A |
| MEF150US28B |
85 ~ 264 VAC |
28 VDC / 4.83A |
| MDF150US28B |
85 ~ 264 VAC |
28 VDC / 4.83A |
| MAF150US36B |
85 ~ 264 VAC |
36 VDC / 3.06A |
| MUF150US36B |
85 ~ 264 VAC |
36 VDC / 3.06A |
| MEF150US36B |
85 ~ 264 VAC |
36 VDC / 3.75A |
| MDF150US36B |
85 ~ 264 VAC |
36 VDC / 3.75A |
| MAF150US48B |
85 ~ 264 VAC |
48 VDC / 2.09A |
| MUF150US48B |
85 ~ 264 VAC |
48 VDC / 2.09A |
| MEF150US48B |
85 ~ 264 VAC |
48 VDC / 2.71A |
| MDF150US48B |
85 ~ 264 VAC |
48 VDC / 2.71A |
| MAF150US12B |
85 ~ 264 VAC |
12 VDC / 8.34A |
| MUF150US12B |
85 ~ 264 VAC |
12 VDC / 8.34A |
| MEF150US12B |
85 ~ 264 VAC |
12 VDC / 10.84A |
| MDF150US12B |
85 ~ 264 VAC |
12 VDC / 10.84A |
| MAF150US15B |
85 ~ 264 VAC |
15 VDC / 7.34A |
| MUF150US15B |
85 ~ 264 VAC |
15 VDC / 7.34A |
| MEF150US15B |
85 ~ 264 VAC |
15 VDC / 9A |
| MDF150US15B |
85 ~ 264 VAC |
15 VDC / 9A |
| MAF150US24B |
85 ~ 264 VAC |
24 VDC / 4.59A |
| MUF150US24B |
85 ~ 264 VAC |
24 VDC / 4.59A |
