CINCON开放电源500W系列CFM500S240 CFM500S480 CFM500S360
详细信息
| | 品牌：CINCON | | 类型：AC/DC电源 | | 输入电压：DC90-264V V | |
| | 输出功率：500 W | | 晶体管连接方式：单端式 | | 输出电压：DC12V-48V V | |
| | 工作效率：90 % | | 输出波纹噪音：100MV | | 输出电压精度：+/-1 % | |
| | 电压调整率：+/-1 % | | 负载调整率：+/-1 % | | 输出电流：12 A | |
| | 型号：CFM500S360 CFM500S120 | | | | | |

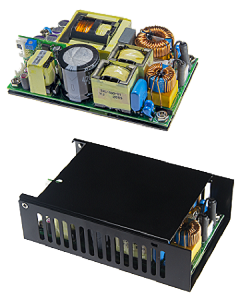

CINCON开放式电源供应器500W系列CFM500S240 CFM500S480 CFM500S360 CFM500S120
500W AC-DC 3
′′x5
′′开放式底板冷却电源
CFM500S
通用输入范围80
〜264Vac
效率94.5
％
3
英寸x 5
英寸紧凑型
功率密度，20.96W / Inch3
390W
自然，470
〜500W
传导对流
空载功耗<0.5W
过温保护
PS
开/
关遥控器
电源正常和电源故障信号
+ 5V
待机，12V
风扇输出
低浪涌电流
Model List
| Part Number |
Power (Watts) |
Input Voltage |
Output Voltage |
Output Current |
Efficiency (效率) |
Operating Altitude |
Operating Temperature |
| CFM500S120 |
500.04W |
80-264 |
12V |
41.67A |
92.5 |
5000m |
-40°C ~ 85°C |
| CFM500S180 |
500.04W |
80-264 |
18V |
27.78A |
93.5 |
5000m |
-40°C ~ 85°C |
| CFM500S240 |
499.92W |
80-264 |
24V |
20.83A |
94.5 |
5000m |
-40°C ~ 85°C |
| CFM500S360 |
500.04W |
80-264 |
36V |
13.89A |
94.5 |
5000m |
-40°C ~ 85°C |
| CFM500S480 |
500.16W |
80-264 |
48V |
10.42A |
94.5 |
5000m |
-40°C ~ 85°C |
| CFM500S120C |
500.04W |
80-264 |
12V |
41.67A |
92.5 |
5000m |
-40°C ~ 85°C |
| CFM500S180C |
500.04W |
80-264 |
18V |
27.78A |
93.5 |
5000m |
-40°C ~ 85°C |
| CFM500S240C |
499.92W |
80-264 |
24V |
20.83A |
94.5 |
5000m |
-40°C ~ 85°C |
| CFM500S360C |
500.04W |
80-264 |
36V |
13.89A |
94.5 |
5000m |
-40°C ~ 85°C |
| CFM500S480C |
500.16W |
80-264 |
48V |
10.42A |
94.5 |
5000m |
-40°C ~ 85°C |
