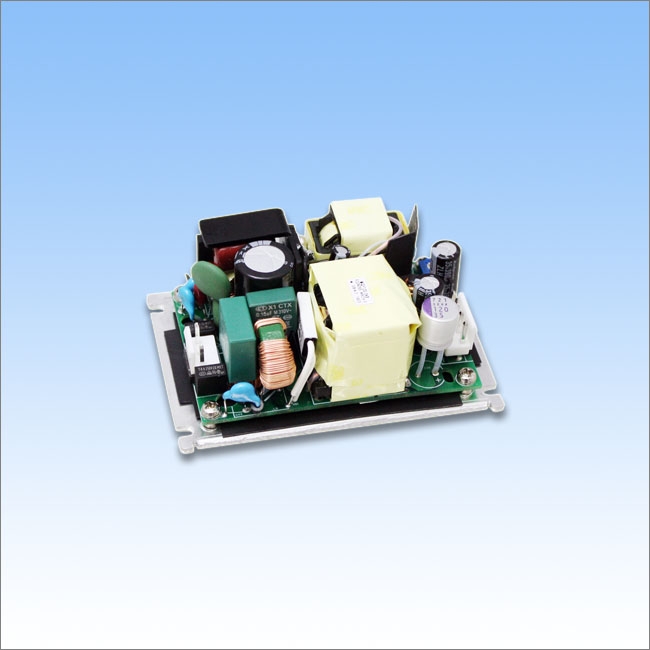

翊嘉紧凑尺寸开关电源ARF130O-12S ARF130O-24S
详细信息
| | 品牌：翊嘉 | | 类型：AC/DC电源 | | 输入电压：AC90-264 V | |
| | 输出功率：130 W | | 调制方式：脉冲宽度调制（PWM)式 | | 晶体管连接方式：单端式 | |
| | 输出电压：DC12-48 V | | 工作效率：89 % | | 输出波纹噪音：50MV | |
| | 输出电压精度：+/-1 % | | 电压调整率：+/-1 % | | 负载调整率：+/-1 % | |
| | 输出电流：11 A | | 型号：ARF130O-48S | | | |
紧凑尺寸开关电源ARF130O-12S ARF130O-24S ARF130O-48S
130
瓦NEW
开放式ITE
交换PSU
开架式开关电源
通用输入范围90-264VAC
125W
自然对流
紧凑尺寸：3.59 x 2.15 x 1.32
英寸
空载输入功耗<0.3W
-30
°C
至+ 70
°C
范围工作温度
工作海拔5000M
主动PFC
功能
I / O
绝缘电压4000VAC
三年产品保固
| Input Specifications / 輸入規格 |
| Voltage |
90~264 VAC |
|
| Frequency |
47-63 Hz |
|
| Inrush Current (<2ms) |
<50 A (115 VAC) /
<85 A (230 VAC) |
(max.) |
| Leakage Current |
<0.1 mA / 264 VAC (Touch Current) |
(max.) |
| |
|
|
| Output Specifications / 輸出規格 |
| Power |
130 |
(max.) |
| Voltage |
12, 24, 48 |
|
| |
|
| Ripple & Noise |
12S:160mV (Vp-p)
---------------------------------
others:1% Vout |
(max.) |
| |
|
|
| Protection / 保護規格 |
| Over Power Protection |
Protection level 1 (nominal)：
Auto recovery, Hiccup mode
Protection level 2 (instantaneous high current)：
Latch |
| Over Voltage Protection |
Protection level 1 (nominal)：
Auto recovery
Protection level 2 (instantaneous high voltage)：
Latch |
| Overt Temperature Protection |
Auto recovery |
| Short Circuit Protection |
Protection level 1 (nominal)：
Continuous, Auto recovery
Protection level 2 (instantaneous high current)：
Latch |
| |
|
| Environment Specification / 環境規格 |
| Operating Temperature |
-30 °C to +70 °C |
| Storage Temperature |
-30 °C to +80 °C |
| Temperature Coefficient |
±0.05% / °C |
| Altitude During Operation |
5000m |
| Humidity |
20~90% RH |
| Vibration |
(10~500Hz, 2G 10min./1cycle,60min. each along X, Y, Z axes) |
| |
|
| SAFETY & EMC |
Isolation Voltage
(Input to Output) |
4000VAC or 5656VDC |
| |
|
| |
|
| Others / 其他 |
Dimensions
(Tolerance ±0.5mm) |
91.19 x 54.61 x 33.5 mm
3.59 x 2.15 x 1.32 inches |
| Weight |
200 g |
| Cooling Method |
Natural Convection /
8CFM FAN |
ARF130O-12S
ARF130O-24S
ARF130O-48S
