CINCON模块电源EC7BW 20W系列EC7BW-24D15 C EC7BW-24D12
详细信息
| 品牌:CINCON | | 型号:EC7BW-48S12 EC7BW-48S15 | | 加工定制:否 | |
| 输出电流:4 A | | 输入电压:DC9-36V/18-74V V | | 输出电压:DC3.3--15 V | |
| 输出功率:20 W | | 频率范围:250-300KHZ | | 额定正向平均电流:8 | |
| 工作温度:-40--85度 ℃ | | | | | |

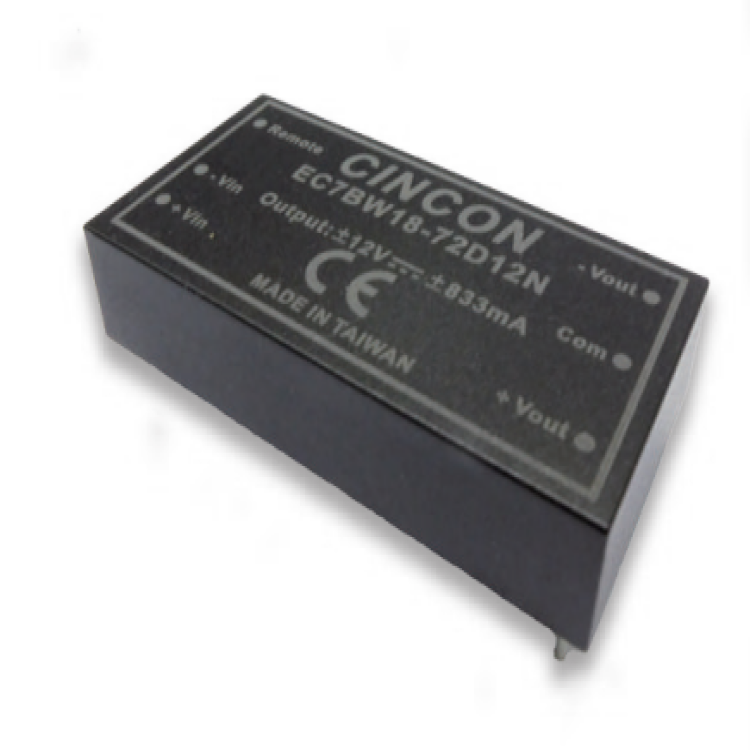

CINCON
模块电源EC7BW 20W
系列EC7BW-24D15 C EC7BW-24D12 EC7BW-48S33 EC7BW-48S12 EC7BW-48S15
EC7BW
20 WATT 4
:1
输入
DC-DC
转换器
20W
输出
4
:1
输入范围
效率90
%
连续短路保护
Pi
输入滤波器
Part Number |
Input Voltage |
Output Voltage |
Output Current |
No load Input Current |
Efficiency (效率) |
I/O Isolation Voltage |
EC7BW-48S33N |
18~75V |
3.3V |
5.5A |
25mA |
88 |
1500VDC |
EC7BW-48S05N |
18~75V |
5V |
4A |
25mA |
90 |
1500VDC |
EC7BW-48S12N |
18~75V |
12V |
1.67A |
25mA |
90 |
1500VDC |
EC7BW-48S15N |
18~75V |
15V |
1.33A |
25mA |
90 |
1500VDC |
EC7BW-48D05N |
18~75V |
±5V |
±2A |
30mA |
89 |
1500VDC |
EC7BW-48D12N |
18~75V |
±12V |
±0.835A |
25mA |
88 |
1500VDC |
EC7BW-48D15N |
18~75V |
±15V |
±0.666A |
25mA |
88 |
1500VDC |
EC7BW-48S33S |
18~75V |
3.3V |
5.5A |
25mA |
88 |
1500VDC |
EC7BW-48S05S |
18~75V |
5V |
4A |
25mA |
90 |
1500VDC |
EC7BW-48S12S |
18~75V |
12V |
1.67A |
25mA |
90 |
1500VDC |
EC7BW-48S15S |
18~75V |
15V |
1.33A |
25mA |
90 |
1500VDC |
EC7BW-48D05S |
18~75V |
±5V |
±2A |
30mA |
89 |
1500VDC |
EC7BW-48D12S |
18~75V |
±12V |
±0.835A |
25mA |
88 |
1500VDC |
EC7BW-48D15S |
18~75V |
±15V |
±0.666A |
25mA |
88 |
1500VDC |
EC7BW-24S33N |
9~36V |
3.3V |
5.5A |
55mA |
87 |
1500VDC |
EC7BW-24S05N |
9~36V |
5V |
4A |
55mA |
90 |
1500VDC |
EC7BW-24S12N |
9~36V |
12V |
1.67A |
55mA |
90 |
1500VDC |
EC7BW-24S15N |
9~36V |
15V |
1.33A |
55mA |
90 |
1500VDC |
EC7BW-24D05N |
9~36V |
±5V |
±2A |
70mA |
89 |
1500VDC |
EC7BW-24D12N |
9~36V |
±12V |
±0.835A |
35mA |
88 |
1500VDC |
EC7BW-24D15N |
9~36V |
±15V |
±0.666A |
35mA |
88 |
1500VDC |
EC7BW-24S33S |
9~36V |
3.3V |
5.5A |
55mA |
87 |
1500VDC |
EC7BW-24S05S |
9~36V |
5V |
4A |
55mA |
90 |
1500VDC |
EC7BW-24S12S |
9~36V |
12V |
1.67A |
55mA |
90 |
1500VDC |
EC7BW-24S15S |
9~36V |
15V |
1.33A |
55mA |
90 |
1500VDC |
EC7BW-24D05S |
9~36V |
±5V |
±2A |
70mA |
89 |
1500VDC |
EC7BW-24D12S |
9~36V |
±12V |
±0.835A |
35mA |
88 |
1500VDC |
EC7BW-24D15S |
9~36V |
±15V |
±0.666A |
35mA |
88 |
1500VDC |
