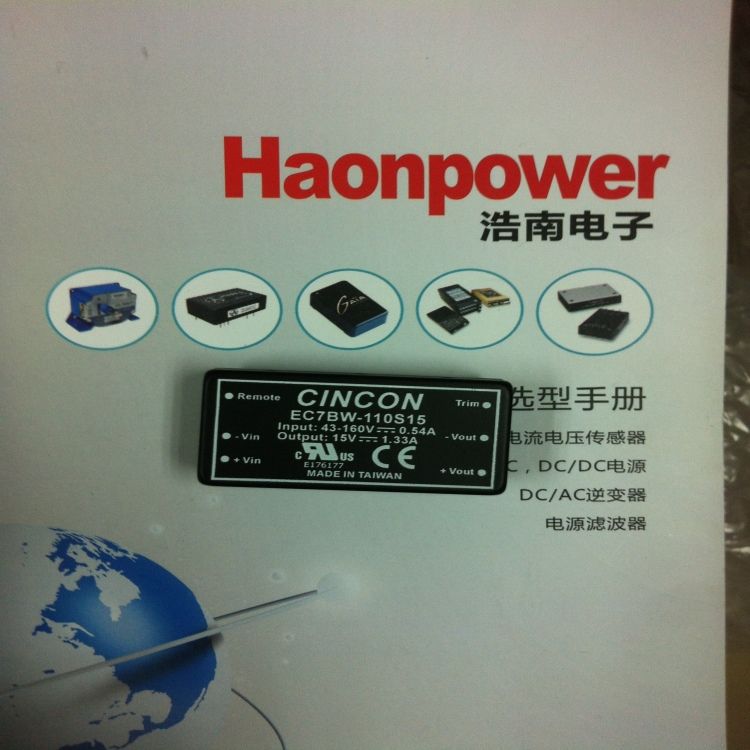

CINCON机车电源模块20W系列EC7BW-110S12 EC7BW-110S05EC7BW-110S15
详细信息
| | 品牌：CINCON | | 型号：EC7BW-110S15 | | 加工定制：否 | |
| | 输出电流：4 A | | 输入电压：DC43-160 V | | 输出电压：DC5--15 V | |
| | 输出功率：20 W | | 频率范围：250KHZ | | 额定正向平均电流：2 | |
| | 工作温度：-40--85度 ℃ | | | | | |
CINCON
机车电源模块20W系列
EC7BW-110S12 EC7BW-110S05
20 WATT 4
：1
输入
DC-DC
转换器
20W
输出
输入范围43-160VDC
效率90
％
低空载输入功率
远程开/
关
连续短路保护
Model
Number |
Input
Voltage |
Output
Voltage |
Output Current |
Intput Current |
效率EFF |
| Min |
Max |
No Load |
Full Load |
| EC7BW-110S05 |
43-160V |
5V |
0mA |
4000mA |
3mA |
205.4mA |
88.5 |
| EC7BW-110S12 |
43-160V |
12V |
0mA |
1670mA |
3mA |
202mA |
90 |
| EC7BW-110S15 |
43-160V |
15V |
0mA |
1330mA |
3mA |
203.1mA |
89.5 |
| EC7BW-110D12 |
43-160V |
+/-12V |
0mA |
+/-833mA |
3mA |
204.3mA |
89 |
| EC7BW-110D15 |
43-160V |
+/-15V |
0mA |
+/-667mA |
3mA |
205.4mA |
88.5 |
Dimensions(Inch)
2.00x1.00x0.40(DIP)
