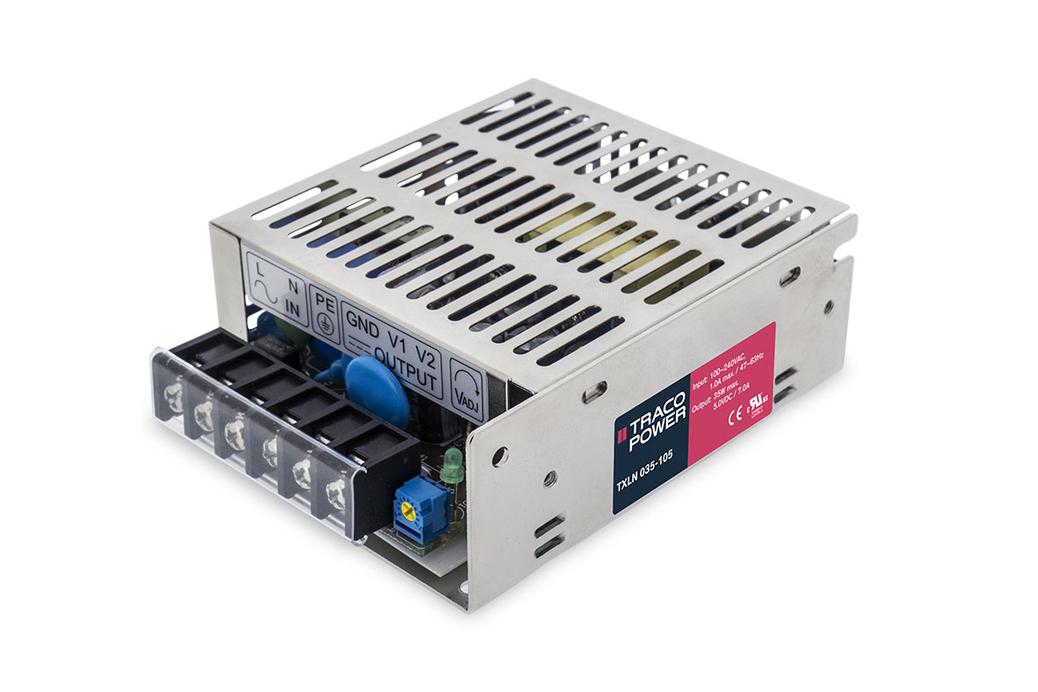

TRACO POWERTXLN系列35W交流电源TXLN035-215 TXLN035-22M2
详细信息
| | 品牌：TRACO POWER | | 类型：AC/DC电源 | | 输入电压：88-264 VAC / 125-375 VDC V | |
| | 输出功率：35 W | | 晶体管连接方式：单端式 | | 输出电压：DC5-48 V | |
| | 工作效率：87 % | | 型号：TXLN035-22M3 TXLN035-148 | | | |
TXLN系列35W交流电源TXLN035-215 TXLN035-22M2 TXLN 035-22M3
TXLN系列是一系列封闭式电源，为经济型成本应用而设计。凭借的金属外壳和螺钉接线端子连接，它们易于安装在工业设备中。这些电源具有通用输入。
特征
带螺钉接线端子的紧凑型金属外壳
具有绝缘输出的单输出和多输出模型
有源功率因数校正> 0.95
效率91％
型号不带风扇200瓦
短路，过压和过载保护
3年产品保修
Compare
Model
Power
Input
Output
Short description
TXLN 035-103
30 W
88-264 VAC / 125-375 VDC
3.3 VDC
(3-3.6 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-105
35 W
88-264 VAC / 125-375 VDC
5 VDC
(4.5-5.5 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
on demand
35 W
88-264 VAC / 125-375 VDC
7.5 VDC
(6.75-8.25 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-112
35 W
88-264 VAC / 125-375 VDC
12 VDC
(10.8-13.2 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-115
35 W
88-264 VAC / 125-375 VDC
15 VDC
(13.5-16.5 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-124
35 W
88-264 VAC / 125-375 VDC
24 VDC
(21.6-26.4 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
on demand
35 W
88-264 VAC / 125-375 VDC
30 VDC
(27-33 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-148
38 W
88-264 VAC / 125-375 VDC
48 VDC
(43.2-52.8 VDC)
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-212
35 W
88-264 VAC / 125-375 VDC
5/12 VDC
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-215
35 W
88-264 VAC / 125-375 VDC
5/24 VDC
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-22M2
35 W
88-264 VAC / 125-375 VDC
±12 VDC
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
TXLN 035-23M3
35 W
88-264 VAC / 125-375 VDC
±15 VDC
35 Watt AC/DC, industrial, 88-264 VAC input, 3000 VAC isolation, metal enclosure, chassis mount
