P-DUKE工业电源模块MPU01-05S15 MPU01-05S12 MPU01-05S3P3
详细信息
| | 品牌：P-DUKE | | 加工定制：否 | | 型号：MPU01-05S24 MPU01-05D15 | |
| | 输入电压：dc4.5-5.5v,12-18v, V | | 输出电压：DC3.3--24 V | | 输出功率：1 W | |
| | 负载调整率：+/-2% | | 显示精度：+/-2% | | | |
P-DUKE工业电源模块MPU01-05S15 MPU01-05S12 MPU01-05S3P3 MPU01-05S24 MPU01-05D15
產品特点
■ 1W 輸出功率
■ 無低負載需求
■ 輸入電壓範圍：4.5-5.5, 9.6-14.4, 12-18, 19.2-28.8 VDC
■ 輸出電壓：3.3, 5, 12, 15, ±5, ±12, ±15 VDC
■ 5000VAC 绝缘電壓
■ 2MOPP; 8mm 空間距離/ 沿面距離
■ 漏電流低於2μA
■ 內建輸出短路保護
| 產品型號 |
輸入範圍 |
輸出電壓 |
| MPU01-05S3P3 |
4.5 ~ 5.5 VDC |
3.3 VDC / 303 mA |
| MPU01-05S05 |
4.5 ~ 5.5 VDC |
5 VDC / 200 mA |
| MPU01-05S12 |
4.5 ~ 5.5 VDC |
12 VDC / 83 mA |
| MPU01-05S15 |
4.5 ~ 5.5 VDC |
15 VDC / 67 mA |
| MPU01-05D05 |
4.5 ~ 5.5 VDC |
±5 VDC / ±100 mA |
| MPU01-05D12 |
4.5 ~ 5.5 VDC |
±12 VDC / ±42 mA |
| MPU01-05D15 |
4.5 ~ 5.5 VDC |
±15 VDC / ±34 mA |
| MPU01-12S3P3 |
9.6 ~ 14.4 VDC |
3.3 VDC / 303 mA |
| MPU01-12S05 |
9.6 ~ 14.4 VDC |
5 VDC / 200 mA |
| MPU01-12S12 |
9.6 ~ 14.4 VDC |
12 VDC / 83 mA |
| MPU01-12S15 |
9.6 ~ 14.4 VDC |
15 VDC / 67 mA |

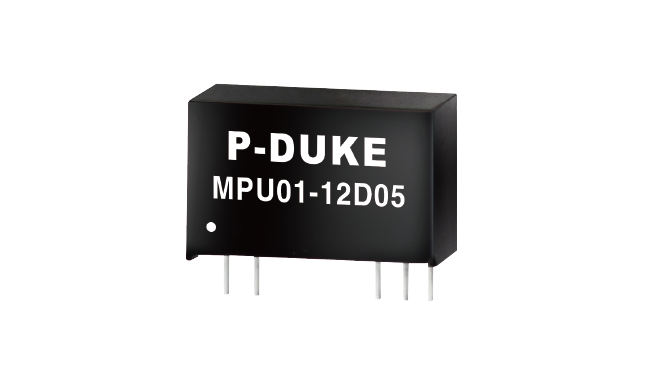

| MPU01-12D05 |
9.6 ~ 14.4 VDC |
±5 VDC / ±100 mA |
| MPU01-12D12 |
9.6 ~ 14.4 VDC |
±12 VDC / ±42 mA |
| MPU01-12D15 |
9.6 ~ 14.4 VDC |
±15 VDC / ±34 mA |
| MPU01-15S3P3 |
12 ~ 18 VDC |
3.3 VDC / 303 mA |
| MPU01-15S05 |
12 ~ 18 VDC |
5 VDC / 200 mA |
| MPU01-15S12 |
12 ~ 18 VDC |
12 VDC / 83 mA |
| MPU01-15S15 |
12 ~ 18 VDC |
15 VDC / 67 mA |
| MPU01-15D05 |
12 ~ 18 VDC |
±5 VDC / ±100 mA |
| MPU01-15D12 |
12 ~ 18 VDC |
±12 VDC / ±42 mA |
| MPU01-15D15 |
12 ~ 18 VDC |
±15 VDC / ±34 mA |
| MPU01-24S3P3 |
19.2 ~ 28.8 VDC |
3.3 VDC / 303 mA |
| MPU01-24S05 |
19.2 ~ 28.8 VDC |
5 VDC / 200 mA |
| MPU01-24S12 |
19.2 ~ 28.8 VDC |
12 VDC / 83 mA |
| MPU01-24S15 |
19.2 ~ 28.8 VDC |
15 VDC / 67 mA |
| MPU01-24D05 |
19.2 ~ 28.8 VDC |
±5 VDC / ±100 mA |
| MPU01-24D12 |
19.2 ~ 28.8 VDC |
±12 VDC / ±42 mA |
| MPU01-24D15 |
19.2 ~ 28.8 VDC |
±15 VDC / ±34 mA |
