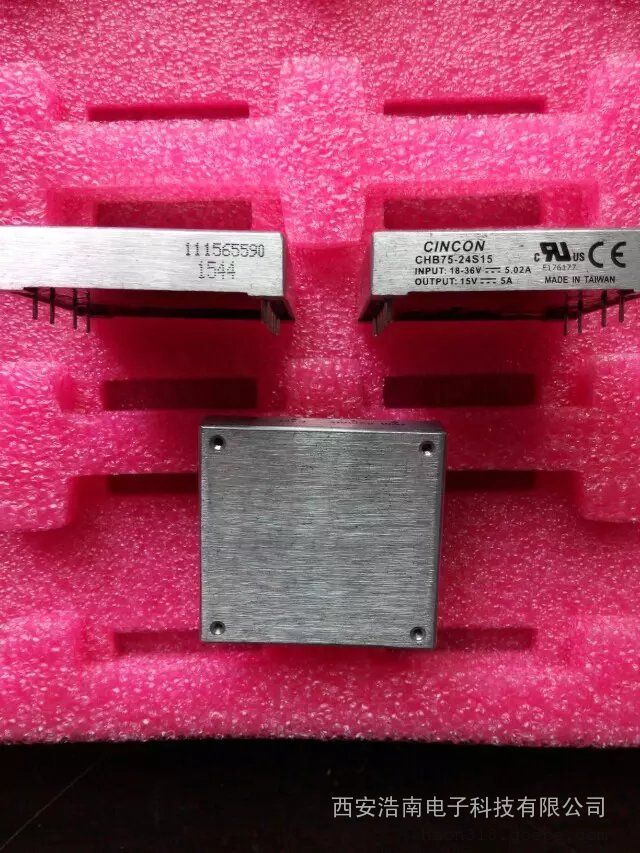

CINCONCHB75 系列75W DC/DC电源模块CHB75-24S33 CHB75-24S05
详细信息
| | 品牌：CINCON | | 型号： CHB75-24S12 CHB75 | | 加工定制：否 | |
| | 输出电流：12 A | | 输入电压：DC18-36 V | | 输出电压：DC3.3-48 V | |
| | 输出功率：75 W | | 工作温度：-40--100度 ℃ | | | |
CHB75 系列75W DC/DC电源模块CHB75-24S33 CHB75-24S05 CHB75-24S12 CHB75-24S24 CHB75-24S15
- 49.5至75瓦
- DC-DC转换器
- •49.5-75W输出
- •半砖尺寸
- •五面金属外壳
- •调节输出
- •效率89％
- •连续短路保护
- Model List
| Part Number |
Input Voltage |
Output Voltage |
Output Current |
No load Input Current |
Efficiency (效率) |
I/O Isolation Voltage |
| CHB75-48S33 |
36~75V |
3.3V |
15A |
50mA |
81 |
1500VDC |
| CHB75-48S05 |
36~75V |
5V |
15A |
50mA |
84 |
1500VDC |
| CHB75-48S12 |
36~75V |
12V |
6.25A |
50mA |
89 |
1500VDC |
| CHB75-48S15 |
36~75V |
15V |
5A |
50mA |
88 |
1500VDC |
| CHB75-48S24 |
36~75V |
24V |
3.13A |
50mA |
89 |
1500VDC |
| CHB75-48S33N |
36~75V |
3.3V |
15A |
50mA |
81 |
1500VDC |
| CHB75-48S05N |
36~75V |
5V |
15A |
50mA |
84 |
1500VDC |
| CHB75-48S12N |
36~75V |
12V |
6.25A |
50mA |
89 |
1500VDC |
| CHB75-48S15N |
36~75V |
15V |
5A |
50mA |
88 |
1500VDC |
| CHB75-48S24N |
36~75V |
24V |
3.13A |
50mA |
89 |
1500VDC |
| CHB75-12S33 |
9~18V |
3.3V |
15A |
50mA |
78 |
1500VDC |
| CHB75-12S05 |
9~18V |
5V |
15A |
50mA |
83 |
1500VDC |
| CHB75-12S12 |
9~18V |
12V |
6.25A |
50mA |
87 |
1500VDC |
| CHB75-12S15 |
9~18V |
15V |
5A |
50mA |
86 |
1500VDC |
| CHB75-12S24 |
9~18V |
24V |
3.13A |
50mA |
87 |
1500VDC |
| CHB75-12S33N |
9~18V |
3.3V |
15A |
50mA |
78 |
1500VDC |
| CHB75-12S05N |
9~18V |
5V |
15A |
50mA |
83 |
1500VDC |
| CHB75-12S12N |
9~18V |
12V |
6.25A |
50mA |
87 |
1500VDC |
| CHB75-12S15N |
9~18V |
15V |
5A |
50mA |
86 |
1500VDC |
| CHB75-12S24N |
9~18V |
24V |
3.13A |
50mA |
87 |
1500VDC |
