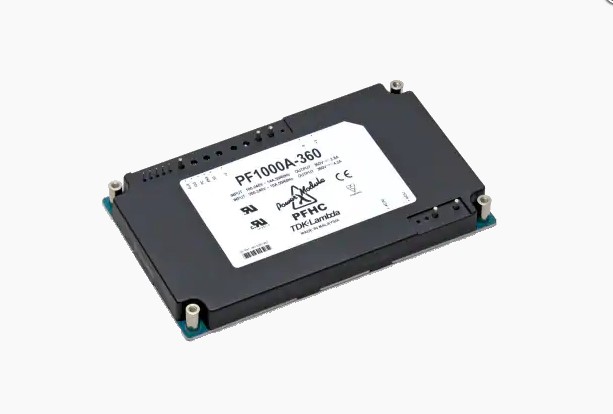

TDK-LAMBDAPF1000A-360 PFC功率因数校正模块PF500A-360PF1000A-360
详细信息
| | 品牌：TDK-LAMBDA | | 型号：PF1000A-360 | | 加工定制：否 | |
| | 输出电流：20 A | | 输入电压：AC85-264 V | | 输出电压：DC360 V | |
| | 输出功率：500-1000 W | | 频率范围：47-63HZ | | 工作温度：-40--85 ℃ | |
TDK-LAMBDA PFC
功率因数校正模块PF1000A-360 PF500A-360
输入电压：AC
85～265Vac/170～265Vac
输出电压：DC360V
工作温度范围：-20～85°C
效率：90%
形状 / 安装：基板搭载
尺寸：PF1000A-360(
146mmX 86mmX 12.7mm)
PF500A-360(83mmX 86mmX 12.7mm)
| Model name |
Nominal
Voltage
range |
Input voltage
range |
PFHC operation
input voltage
range |
Input
current
(typ) |
Nominal
output voltage |
output
current |
output
power |
| PF500A-360 |
100-240VAC |
85-265VAC
(47-63Hz) |
85-255VAC
(47-63Hz) |
5.6A |
360VDC |
1.4A |
504W |
| 200-240VAC |
170-265VAC
(47-63Hz) |
170-255VAC
(47-63Hz) |
4.0A |
360VDC |
2.1A |
756W |
| PF1000A-360 |
100-240VAC |
85-265VAC
(47-63Hz) |
85-255VAC
(47-63Hz) |
11.2A |
360VDC |
2.8A |
1008W |
| 200-240VAC |
170-265VAC
(47-63Hz) |
170-255VAC
(47-63Hz) |
8.0A |
360VDC |
4.2A |
1512W |
