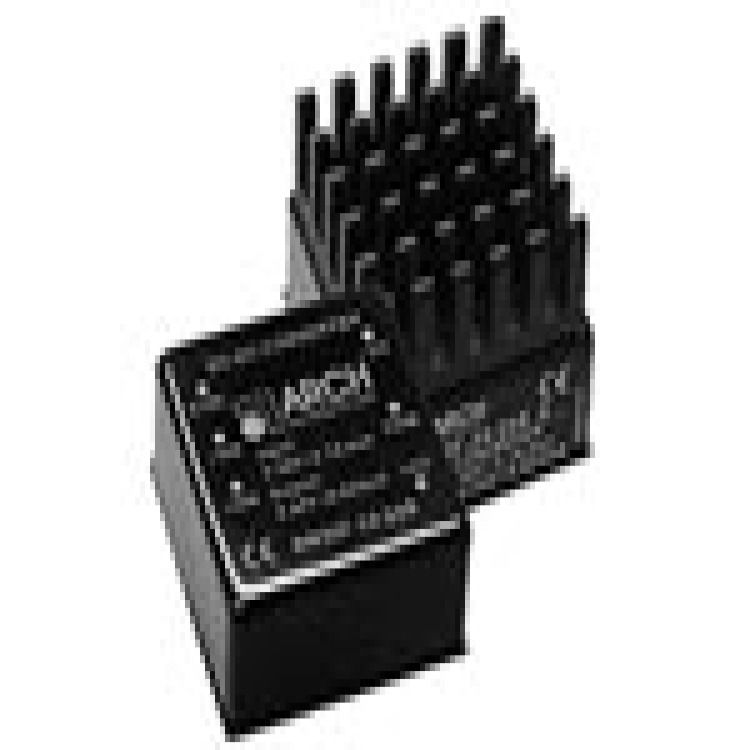

ARCH电源模块SW30F系列SW30F-48-5S SW30F-48-12S
详细信息
| | 品牌：ARCH | | 类型：DC/DC电源 | | 输入电压：DC18-72V V | |
| | 输出功率：30 W | | 调制方式：脉冲宽度调制（PWM)式 | | 晶体管连接方式：单端式 | |
| | 输出电压：DC3.3-24 V | | 工作效率：90 % | | 型号：SW30F-48-15S SW30F-48-24S | |
ARCH
电源模块SW30F
系列SW30F-48-5S SW30F-48-12S SW30F-48-15S SW30F-48-24S
30
瓦NEW
DC-DC
转换器
可安装PCB
的电源模块
很小的尺寸：1.02 x 1.02 x 0.45
英寸
效率高达90
％
4
：1
宽输入范围
内部没有钽电容器
低纹波和噪音
远程开/
关控制
工作温度：-40
°C
…+ 85
°C
（降额使用）
螺丝端子选件
安全符合UL / IEC / EN 62368-1
和60950
三年产品保修
| Input Specifications / 輸入規格 |
| Voltage |
4:1 Range:
24V (9~36 VDC)
48V (18~75 VDC) |
|
| Filter |
C type |
|
| |
|
|
| Output Specifications / 輸出規格 |
| Power |
30 |
(max.) |
| Voltage |
5, 12, 15, 24 |
|
| Trim Voltage Range |
±10% |
|
Voltage Accuracy
(Full Load and Nominal Vin) |
±2% |
|
Minimum Load
(at Full Load) |
|
|
Line Regulation
(LL to HL at Full Load) |
±0.5% |
(typ.) |
Load Regulation
(LL to HL at Full Load) |
±2% |
(typ.) |
| Ripple & Noise |
5S:100mV (Vp-p)
--------------------------------
others:150mV (Vp-p) |
(max.) |
| |
|
|
| Protection / 保護規格 |
| Over Power Protection |
Auto recovery |
| Over Voltage Protection |
Zener diode clamp |
| Short Circuit Protection |
Auto recovery |
| Environment Specification / 環境規格 |
| Operating Temperature |
-40 °C to +85 °C |
|
| Storage Temperature |
-55 °C to +105 °C |
|
| Temperature Coefficient |
±0.02% / °C |
| Humidity |
95% RH |
|
| |
|
|
| SAFETY & EMC |
Isolation Voltage
(Input to Output) |
1600 VDC |
|
| Meet |
UL / IEC / EN 62368-1,
UL / IEC / EN 60950 |
|
| |
|
|
| Others / 其他 |
Dimensions
(Tolerance ±0.5mm) |
26.0 x 26.0 x 11.3 mm
1.02 x 1.02 x 0.45 inches |
| Weight |
SW30F-X:23 g / SW30F:17 g |
| Case Material |
Five-side shielded Aluminum with Non-Conductive base,
Black Anodize |
| Cooling Method |
Free air convection |
|
型号列表
SW30F-24-5S X
SW30F-48-5S X
SW30F-24-12S X
SW30F-48-12S X
SW30F-24-15S X
SW30F-48-15S X
SW30F-24-24S X
SW30F-48-24S X
SW30F-24-5S
SW30F-48-5S
SW30F-24-12S
SW30F-48-12S
SW30F-24-15S
SW30F-48-15S
SW30F-24-24S
SW30F-48-24S
