| | 品牌：ARCH | | 类型：AC/DC电源 | | 输入电压：AC90-305V V | |
| | 输出功率：5 W | | 调制方式：脉冲宽度调制（PWM)式 | | 晶体管连接方式：单端式 | |
| | 输出电压：DC3.3-24V V | | 工作效率：86 % | | 型号：AOCH05-12S-A2 AOCH05-24S | |
输入电压90-305VAC

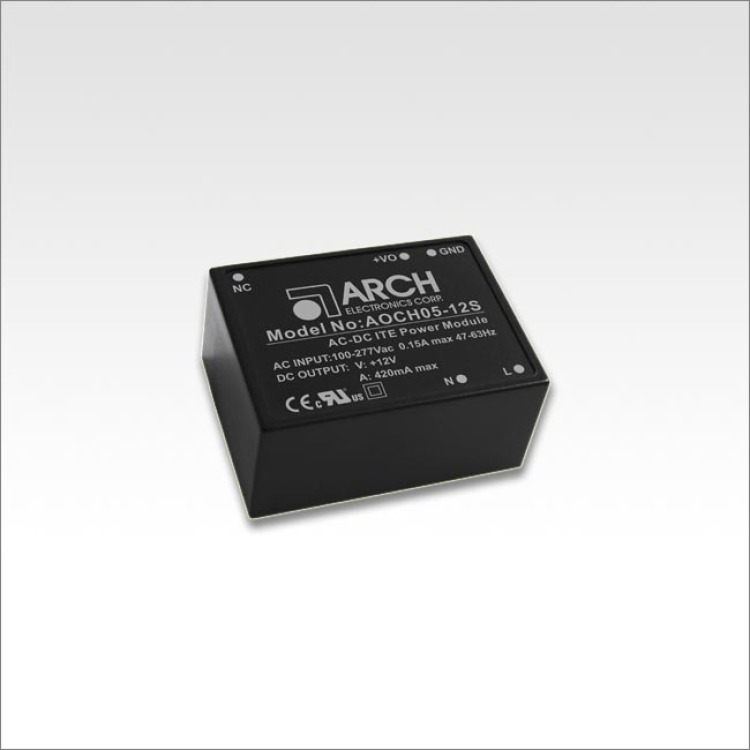

模块电源AOCH05-3.3S-A2 AOCH05-5S-A2 AOCH05-12S-A2 AOCH05-24S-A2
5
瓦NEW
工业用模块电源
紧凑尺寸：1.46 x 1.08 x 0.69
英寸
通用输入范围90-305VAC
，47-440Hz
I / O
绝缘电压4000VAC
工作环境温度范围-40
°C
至+ 70
°C
空载功耗<0.1W
三年产品保固
- •除非另有说明，否则规格在标称输入电压，满预热时间为+ 25°C时。
- •用0.1U 50V // 47U 50V陶瓷电容测量。 交叉输出。
- Input Specifications / 輸入規格
|
| Voltage |
90~305 VAC or 127~430 VDC |
|
| Frequency |
47-440 Hz |
|
| |
|
|
| Output Specifications / 輸出規格 |
| Power |
5 |
(max.) |
| Voltage |
3.3, 5, 12, 24 |
|
Voltage Accuracy
(Full Load and Nominal Vin) |
±2% |
|
Line Regulation
(LL to HL at Full Load) |
3.3S,5S:±0.2%
--------------------------------
12S,24S:±0.1% |
(typ.) |
Load Regulation
(LL to HL at Full Load) |
3.3S:±1%
--------------------------------
others:±0.5% |
(typ.) |
| Ripple & Noise |
3.3S,5S:<100mV (Vp-p)
--------------------------------
12S:<150mV (Vp-p)
--------------------------------
24S:<200mV (Vp-p) |
(max.) |
| Short Circuit Protection |
Hiccup mode,
indefinite (automatic recovery) |
| Environment Specification / 環境規格 |
| Operating Temperature |
-40 °C to +70 °C |
|
| Storage Temperature |
-40 °C to +85 °C |
|
| Temperature Coefficient |
±0.02% / °C |
| Humidity |
95% RH |
|
| |
|
|
| SAFETY & EMC |
Isolation Voltage
(Input to Output) |
4000 VAC |
|
| Others / 其他 |
Dimension
(Tolerance ±0.5mm) |
37.0 x 27.5 x 17.5 mm
1.46 x 1.08 x 0.69 inches |
| Weight |
24 g |
| Case Material |
Plastic resin with Fiberglass
(flammability to UL 94V-0) |
| Cooling Method |
Free air convection |
|
| |
|
|
|
AOCH05-3.3S-A2
AOCH05-5S-A2
AOCH05-12S-A2
AOCH05-24S-A2
