ARCH400HZ开关电源30W系列ATCH30-24S-A2 ATCH30-12S-A2 ATCH30-5S-A2 ATCH30-15S-A2 ATCH30-5S-A2 ATCH30-15S-A2
详细信息
| | 品牌：ARCH | | 类型：AC/DC电源 | | 输入电压：AC90-305V V | |
| | 输出功率：30 W | | 调制方式：脉冲宽度调制（PWM)式 | | 输出电压：DC3.3-24 V | |
| | 工作效率：89 % | | 型号： ATCH30-5S-A2 ATCH3 | | | |
400HZ
开关电源输入90~305 VAC or 120~430 VDC ATCH30-24S-A2 ATCH30-12S-A2 ATCH30-5S-A2 ATCH30-15S-A2
30
瓦NEW
ITE
电源模块

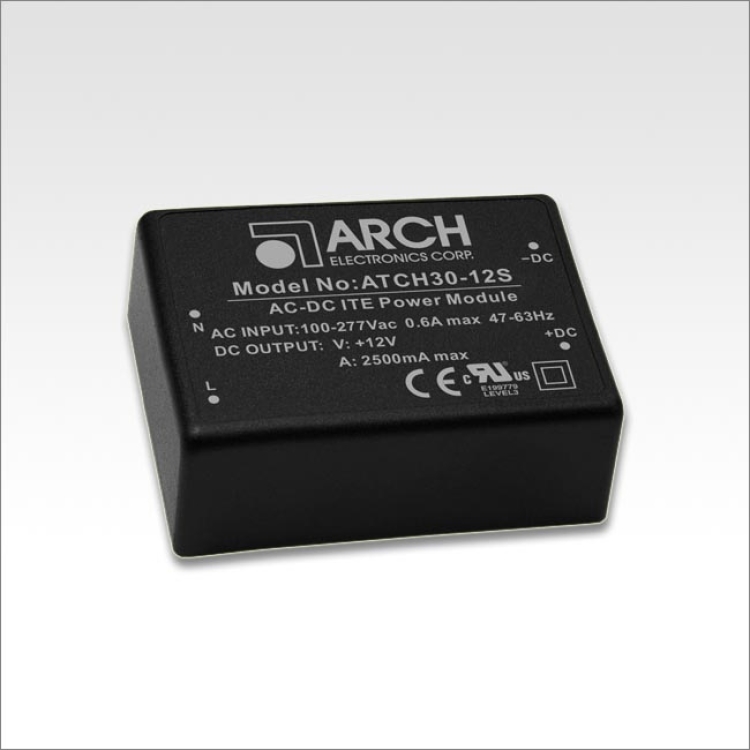

紧凑尺寸：2.53 x 1.78 x 0.85
英寸
通用输入范围90-305VAC
，47-440Hz
I / O
绝缘电压4000VAC
工作环境温度范围-40
°C
至+ 85
°C
空载功耗<0.1W
效率88
％
螺丝端子可选
三年产品保固
400HZ开关电源30W系列ATCH30-24S-A2 ATCH30-12S-A2
| Input Specifications / 輸入規格 |
|
| Voltage |
90~305 VAC or 120~430 VDC |
|
|
| Frequency |
47-440 Hz |
|
|
| |
|
|
|
| Output Specifications / 輸出規格 |
|
| Power |
25 |
(max.) |
|
| Voltage |
5.1, 12, 15, 24 |
|
|
Voltage Accuracy
(Full Load and Nominal Vin) |
±2% |
|
|
Line Regulation
(LL to HL at Full Load) |
±1% |
(typ.) |
|
Load Regulation
(LL to HLat Full Load) |
5.1S:±3%
--------------------------------
12S~24S:±2% |
(typ.) |
|
| Ripple & Noise |
5.1S:120mV (Vp-p)
--------------------------------
12S:150mV (Vp-p)
--------------------------------
15S:160mV (Vp-p
--------------------------------)
24S:240mV (Vp-p) |
(max.) |
|
| Short Circuit Protection |
Hiccup mode,
indefinite (automatic recovery) |
|
| Environment Specification / 環境規格 |
|
| Operating Temperature |
-40 °C to +70 °C |
|
|
| Storage Temperature |
-40 °C to +85 °C |
|
|
| Temperature Coefficient |
±0.05% / °C |
|
| Humidity |
95% RH |
|
|
| Vibration |
IEC60068-2-27
(10~500Hz, 2G 10min./1cycle,60min. each along X, Y, Z axes) |
|
| Shock |
IEC60068-2-6 |
|
|
| |
|
|
|
| SAFETY & EMC |
|
Isolation Voltage
(Input to Output) |
4000 VAC |
|
|
| Agency Approvals |
UL / IEC / EN 62368-1 |
|
|
| Meet |
IEC / EN 60335-1,
IEC / EN 61558-2-16 |
|
|
EMI
(Conducted & Radiated Emission) |
EN 55032 class B |
|
|
EMS
(Noise Immunity) |
EN 55035 |
|
|
| Others / 其他 |
|
Dimension
(Tolerance ±0.5mm) |
52.5 x 27.5 x 23.5 mm
2.07 x 1.08 x 0.93 inches |
|
| Weight |
55 g |
|
| Case Material |
Plastic resin with Fiberglass
(flammability ) |
|
| Cooling Method |
Free air convection |
|
|
| |
Model No.
(Ordering Part No.) |
Input Range |
Output Voltage |
Output Current |
Eff |
| |
( V.AC ) |
( V.DC ) |
( mA ) |
( % ) |
| |
Single Output Models |
| |
ATCH30-5.1S-A2 |
90 ~ 305 VAC |
5.1 |
5000 |
84 |
| |
ATCH30-12S-A2 |
90 ~ 305 VAC |
12 |
2500 |
88 |
| |
ATCH30-15S-A2 |
90 ~ 305 VAC |
15 |
2000 |
87 |
| |
ATCH30-24S-A2 |
90 ~ 305 VAC |
24 |
1250 |
86 |
| |
|
| |
|
| |
|
| |
|
|
|
|
|
|
|
|
|
