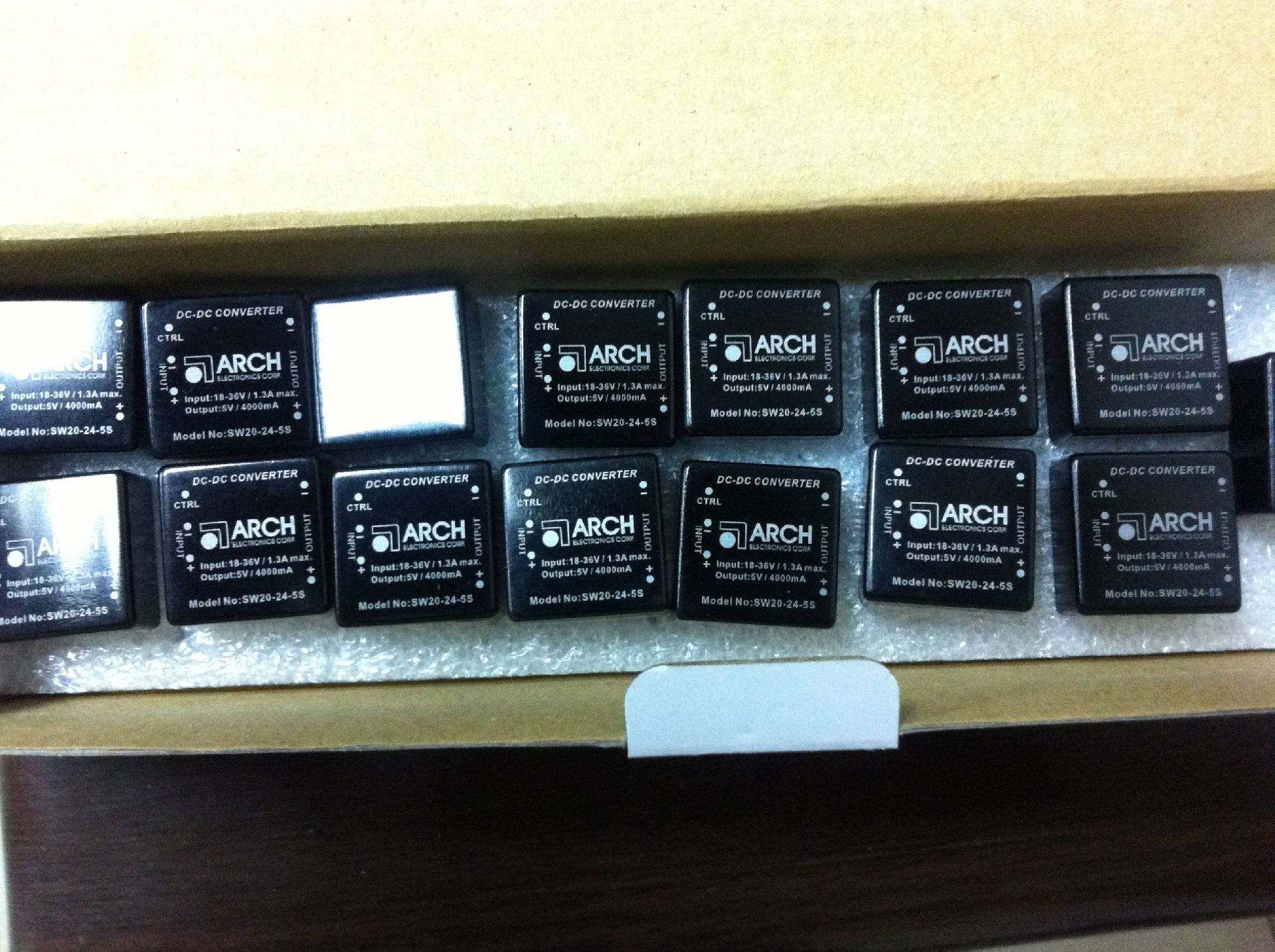

ARCHDC-DC电源转换器SW20-24-5S,SW20-24-12S
详细信息
| | 品牌：ARCH | | 类型：DC/DC电源 | | 输入电压：18-36 V | |
| | 输出功率：20 W | | 调制方式：脉冲宽度调制（PWM)式 | | 输出电压：3.3--24 V | |
| | 工作效率：90 % | | 输出波纹噪音：50mv | | 输出电压精度：+/-2 % | |
| | 电压调整率：+/-10 % | | 负载调整率：+/-2 % | | 输出电流：5 A | |
| | 型号：SW20-24-15S,SW20-24-3.3S | | | | | |
| SW20 Series ( DC-DC Converter -----Module ) |
|
| |
| |
|
|
DC-DC Converter |
|
| |
20 Watts |
Feature |
|
| |
|
|
| |
|
| Standard Size in 1.0 x 1.0 x 0.433 inches |
| Six-side shielded Aluminum with Non-Conductive base, Black Anodize |
| Operating Temperature: -40~85 degrees |
| Package: Module, Screw Terminal |
| The Smallest Dimension in the Market |
| 2:1 Input Range |
| Regulated Output |
| Low Ripple and Noise |
| Remote ON/OFF Control (Optional) |
| Screw Terminal For Optional |
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
| Specification |
| |
1.All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
2.Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output |
|
| |
|
|
|
|
|
| |
Input Specification |
|
| |
Characteristics |
Conditions |
|
| |
Voltage Range |
2:1 Range: |
9 ~ 18 VDC
18 ~ 36 VDC
36 ~ 75 VDC |
|
| |
|
|
|
| |
Filter |
L-C type |
|
| |
|
|
|
|
|
| |
|
|
| |
General Specification |
|
| |
Characteristics |
Conditions |
|
| |
Switching Frequency |
3.3V,5V Output:450K Hz / 12V,15V Output:300K Hz (typ.) |
|
| |
Isolation Voltage (Input to Output) |
1600 VDC (min.) |
|
| |
Operating Temperature |
-40 ℃ to +85°C (with derating) |
|
| |
Storage Temperature |
-55°C to +105°C |
|
| |
Humidity |
95% RH (max.) |
|
| |
Cooling |
Free air convection |
|
| |
|
|
|
|
|
| |
Physical Specification |
|
| |
Characteristics |
Conditions |
|
| |
Dimension (Tolerance ±0.5) |
25.4 x 25.4 x 11.0 mm |
|
| |
1.0 x 1.0 x 0.433 inches |
|
| |
Weight |
15 g |
|
| |
Case Material |
Six-side shielded Aluminum with Non-Conductive base, Black Anodize |
|
| |
|
|
|
|
|
|
|
| |
Model |
|
| |
|
|
| |
|
|
| |
|
| SW20-12-5S |
9 ~ 18 VDC |
5 |
4000 |
89 |
| SW20-12-12S |
9 ~ 18 VDC |
12 |
1660 |
88 |
| SW20-12-15S |
9 ~ 18 VDC |
15 |
1330 |
88 |
| SW20-24-3.3S |
18 ~ 36 VDC |
3.3 |
4500 |
86 |
| SW20-24-5S |
18 ~ 36 VDC |
5 |
4000 |
89 |
| SW20-24-12S |
18 ~ 36 VDC |
12 |
1660 |
89 |
| SW20-24-15S |
18 ~ 36 VDC |
15 |
1330 |
89 |
| SW20-48-3.3S |
36 ~ 75 VDC |
3.3 |
4500 |
84 |
| SW20-48-5S |
36 ~ 75 VDC |
5 |
4000 |
88 |
| SW20-48-12S |
36 ~ 75 VDC |
12 |
1660 |
89 |
| SW20-48-15S |
36 ~ 75 VDC |
15 |
1330 |
89 |
| SW20-12-3.3S-A2 |
9 ~ 18 VDC |
3.3 |
4500 |
85 |
| SW20-12-5S-A2 |
9 ~ 18 VDC |
5 |
4000 |
89 |
| SW20-12-12S-A2 |
9 ~ 18 VDC |
12 |
1660 |
88 |
| SW20-12-15S-A2 |
9 ~ 18 VDC |
15 |
1330 |
88 |
| SW20-24-3.3S-A2 |
18 ~ 36 VDC |
3.3 |
4500 |
86 |
| SW20-24-5S-A2 |
18 ~ 36 VDC |
5 |
4000 |
89 |
| SW20-24-12S-A2 |
18 ~ 36 VDC |
12 |
1660 |
89 |
| SW20-24-15S-A2 |
18 ~ 36 VDC |
15 |
1330 |
89 |
| SW20-48-3.3S-A2 |
36 ~ 75 VDC |
3.3 |
4500 |
84 |
| SW20-48-5S-A2 |
36 ~ 75 VDC |
5 |
4000 |
88 |
| SW20-48-12S-A2 |
36 ~ 75 VDC |
12 |
1660 |
89 |
| SW20-48-15S-A2 |
36 ~ 75 VDC |
15 |
1330 |
89 |
| SW20-12-3.3S-A5 |
9 ~ 18 VDC |
3.3 |
4500 |
85 |
| SW20-12-5S-A5 |
9 ~ 18 VDC |
5 |
4000 |
89 |
| SW20-12-12S-A5 |
9 ~ 18 VDC |
12 |
1660 |
88 |
| SW20-12-15S-A5 |
9 ~ 18 VDC |
15 |
1330 |
88 |
| SW20-24-3.3S-A5 |
18 ~ 36 VDC |
3.3 |
4500 |
86 |
| SW20-24-5S-A5 |
18 ~ 36 VDC |
5 |
4000 |
89 |
| SW20-24-12S-A5 |
18 ~ 36 VDC |
12 |
1660 |
89 |
| SW20-24-15S-A5 |
18 ~ 36 VDC |
15 |
1330 |
89 |
| SW20-48-3.3S-A5 |
36 ~ 75 VDC |
3.3 |
4500 |
84 |
| SW20-48-5S-A5 |
36 ~ 75 VDC |
5 |
4000 |
88 |
| SW20-48-12S-A5 |
36 ~ 75 VDC |
12 |
1660 |
89 |
| SW20-48-15S-A5 |
36 ~ 75 VDC |
15 |
1330 |
89 |
| |
|
|
| |
