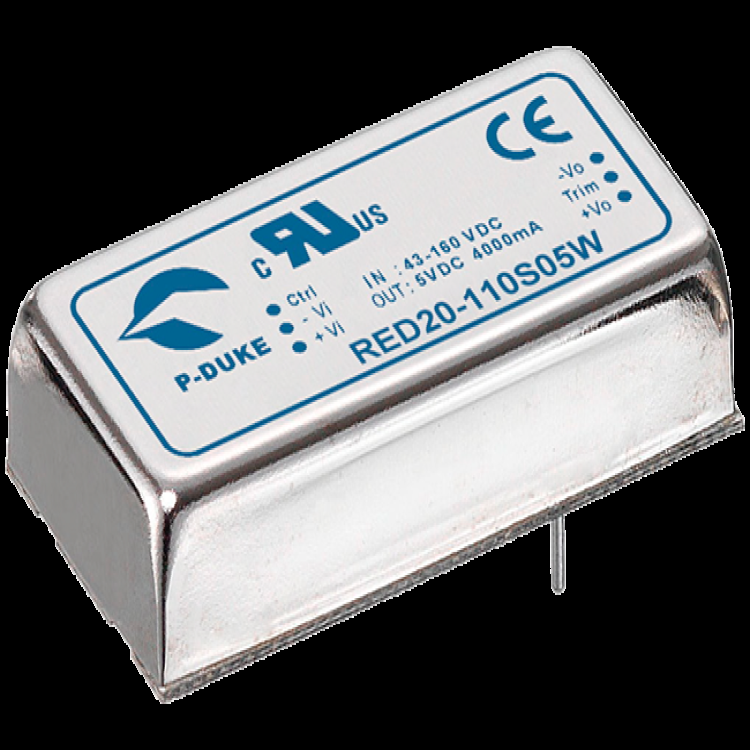

P-DUKE DC110V输入铁路电源RED20W系列
详细信息
| | 品牌：台湾博大 | | 加工定制：是 | | 型号：RED20-110D12W,RED20-110D15W | |
| | 输出电流：5 A | | 输入电压：9-36，18-75，43-160 V | | 输出电压：3.3-24 V | |
| | 输出功率：20 W | | 负载调整率：+/-2% | | 显示精度：+/-2% | |
| | 产品认证：UL,CE,TUV | | | | | |
P-DUKE
电源模块RED20-24S05W RED20-24S15W RED20-24S12W RED20-24D12W RED20-24D15W RED20-48S05W
产品
■2250vdc输入到输出绝缘
■标准2.00 x 1.00 x 0.40英寸
■六面连续护罩
| 產品型號 |
輸入範圍 |
輸出電壓 |
| RED20-24S3P3W |
9 ~ 36 VDC |
3.3 VDC / 4500 mA |
| RED20-24S05W |
9 ~ 36 VDC |
5 VDC / 4000 mA |
| RED20-24S12W |
9 ~ 36 VDC |
12 VDC / 1670 mA |
| RED20-24S15W |
9 ~ 36 VDC |
15 VDC / 1330 mA |
| RED20-24D12W |
9 ~ 36 VDC |
±12 VDC / ±833 mA |
| RED20-24D15W |
9 ~ 36 VDC |
±15 VDC / ±667 mA |
| RED20-48S3P3W |
18 ~ 75 VDC |
3.3 VDC / 4500 mA |
| RED20-48S05W |
18 ~ 75 VDC |
5 VDC / 4000 mA |
| RED20-48S12W |
18 ~ 75 VDC |
12 VDC / 1670 mA |
| RED20-48S15W |
18 ~ 75 VDC |
15 VDC / 1330 mA |
| RED20-48D12W |
18 ~ 75 VDC |
±12 VDC / ±833 mA |
| RED20-48D15W |
18 ~ 75 VDC |
±15 VDC / ±667 mA |
| RED20-110S3P3W |
43 ~ 160 VDC |
3.3 VDC / 4500 mA |
| RED20-110S05W |
43 ~ 160 VDC |
5 VDC / 4000 mA |
| RED20-110S12W |
43 ~ 160 VDC |
12 VDC / 1670 mA |
| RED20-110S15W |
43 ~ 160 VDC |
15 VDC / 1330 mA |
| RED20-110D12W |
43 ~ 160 VDC |
±12 VDC / ±833 mA |
| RED20-110D15W |
43 ~ 160 VDC |
±15 VDC / ±667 mA |
