CINCON开架式开关电源CFM50S240 CFM50S120 CFM50S050 CFM50S150

CINCON开架式开关电源CFM50S240 CFM50S120 CFM50S050 CFM50S150

详细信息

品牌：CINCON	加工定制：是	型号：CFM50S050 CFM50S150
输出电流：20 A	输入电压：AC90-264 V	输出电压：5-48 V
输出功率：50 W	负载调整率：+/-1%	显示精度：1%

CINCON开架式开关电源CFM50S240 CFM50S120 CFM50S050 CFM50S150

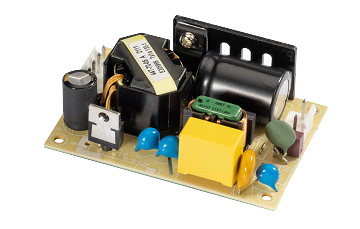

50 瓦 AC-DC 2"x3" ITE 开放式框架电源
CFM50S 50W AC-DC 2＂x3＂ ITE 开放式框架电源
通用输入范围 90~264Vac

效率89%

2”x 3” 开放式框架紧凑尺寸
空载输入功率 < 0.15W

工作海拔 5000m
连续短路保护

过压保护

Part Number	Power (Watts)	Input Voltage	Output Voltage	Output Current	Efficiency (效率)	Operating Altitude	Operating Temperature
CFM50S050	40W	90-264	5V	8.0A	85	5000m	-30°C ~ 80°C
CFM50S120	50.04W	90-264	12V	4.17A	87	5000m	-30°C ~ 80°C
CFM50S150	49.95W	90-264	15V	3.33A	88	5000m	-30°C ~ 80°C
CFM50S240	49.92W	90-264	24V	2.08A	89	5000m	-30°C ~ 80°C
CFM50S360	50.04W	90-264	36V	1.39A	89	5000m	-30°C ~ 80°C
CFM50S480	49.92W	90-264	48V	1.04A	89	5000m	-30°C ~ 80°C
CFM50S050-P	40W	90-264	5V	8.0A	85	5000m	-30°C ~ 80°C
CFM50S120-P	50.04W	90-264	12V	4.17A	87	5000m	-30°C ~ 80°C
CFM50S150-P	49.95W	90-264	15V	3.33A	88	5000m	-30°C ~ 80°C
CFM50S240-P	49.92W	90-264	24V	2.08A	89	5000m	-30°C ~ 80°C
CFM50S360-P	50.04W	90-264	36V	1.39A	89	5000m	-30°C ~ 80°C
CFM50S480-P	49.92W	90-264	48V	1.04A	89	5000m	-30°C ~ 80°C
CFM50S050-CA	40W	90-264	5V	8.0A	85	5000m	-30°C ~ 80°C
CFM50S120-CA	50.04W	90-264	12V	4.17A	87	5000m	-30°C ~ 80°C
CFM50S150-CA	49.95W	90-264	15V	3.33A	88	5000m	-30°C ~ 80°C
CFM50S240-CA	49.92W	90-264	24V	2.08A	89	5000m	-30°C ~ 80°C
CFM50S360-CA	50.04W	90-264	36V	1.39A	89	5000m	-30°C ~ 80°C
CFM50S480-CA	49.92W	90-264	48V	1.04A	89	5000m	-30°C ~ 80°C
